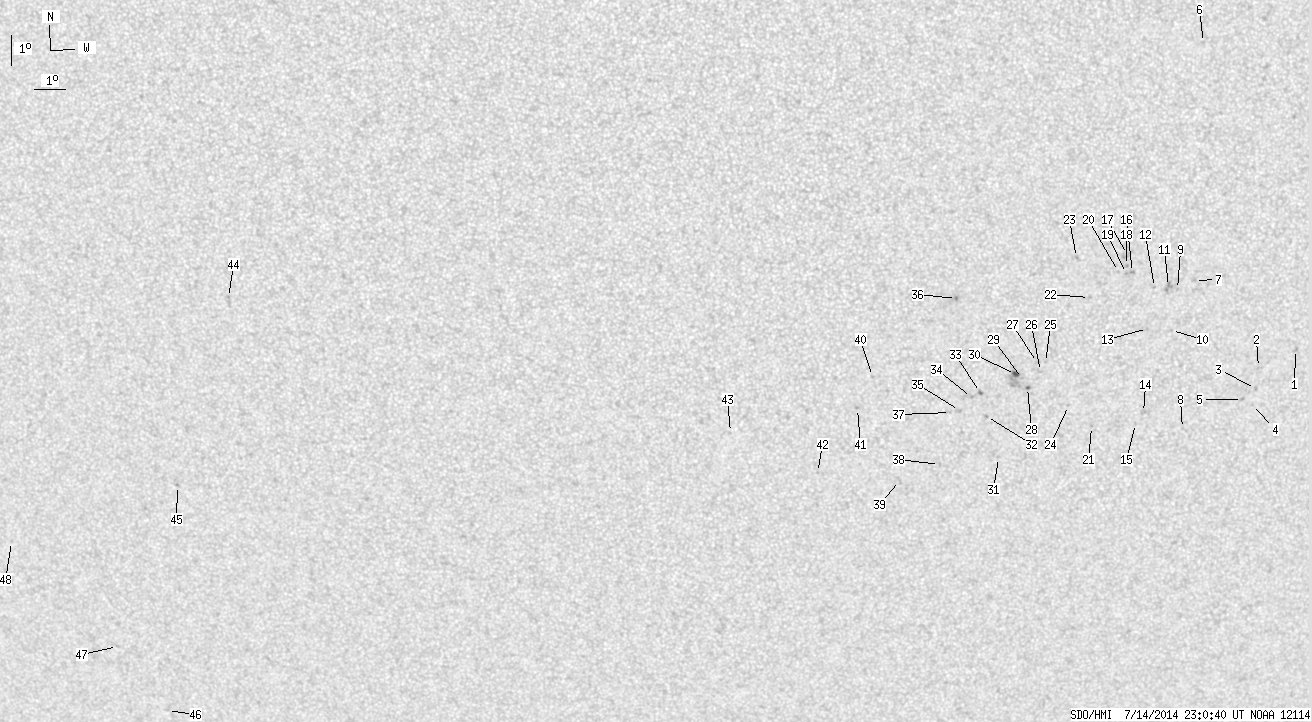

SDO HMI 2014-07-14 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.90 | 86.34 | 1.61 | 48.54 | -20.30 | 146.52 | 10.53 | 202.98 | 0.4718 | 172.3 | 200.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.32 | -19.74 | 156.38 | 20.38 | 219.13 | 0.5215 | 576.0 | 611.7 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.31 | 155.17 | 19.18 | 216.76 | 0.5169 | 704.0 | 531.9 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -21.01 | 155.16 | 19.17 | 215.89 | 0.5250 | 785.0 | 613.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.55 | 155.13 | 19.14 | 215.21 | 0.5310 | 507.0 | 407.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -21.37 | 154.76 | 18.77 | 214.90 | 0.5257 | 711.0 | 562.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.73 | 152.44 | 16.44 | 229.36 | 0.3693 | 644.0 | 360.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -17.36 | 152.68 | 16.69 | 216.82 | 0.4592 | 645.0 | 447.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.30 | 152.81 | 16.82 | 211.04 | 0.5213 | 637.0 | 492.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -17.64 | 152.14 | 16.15 | 215.55 | 0.4578 | 544.0 | 490.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -18.99 | 152.07 | 16.08 | 213.70 | 0.4739 | 625.0 | 500.6 | |
| 0.00 | 4.99 | 0.00 | 2.77 | -17.54 | 151.83 | 15.84 | 215.18 | 0.4537 | 960.0 | 801.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.56 | 151.37 | 15.38 | 214.36 | 0.4498 | 807.0 | 662.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -18.91 | 151.26 | 15.27 | 212.46 | 0.4660 | 684.0 | 610.3 | |
| 0.00 | 3.18 | 0.00 | 1.82 | -21.73 | 151.41 | 15.42 | 209.51 | 0.5034 | 602.0 | 472.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -22.10 | 151.18 | 15.18 | 208.76 | 0.5064 | 713.0 | 582.9 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -17.05 | 150.60 | 14.61 | 213.68 | 0.4366 | 968.0 | 738.8 | |
| 0.00 | 5.72 | 0.00 | 3.13 | -16.46 | 150.39 | 14.40 | 214.10 | 0.4271 | 544.0 | 657.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -16.82 | 150.39 | 14.39 | 213.61 | 0.4317 | 636.0 | 691.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -17.08 | 150.41 | 14.41 | 213.29 | 0.4353 | 835.0 | 704.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -17.01 | 150.14 | 14.15 | 212.90 | 0.4321 | 676.0 | 574.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.17 | 149.69 | 13.70 | 206.30 | 0.4969 | 600.0 | 459.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -17.84 | 149.25 | 13.26 | 210.20 | 0.4358 | 478.0 | 363.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -16.52 | 148.73 | 12.74 | 210.86 | 0.4138 | 832.0 | 744.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.44 | 148.84 | 12.85 | 205.58 | 0.4815 | 578.0 | 447.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -19.98 | 147.96 | 11.96 | 205.44 | 0.4555 | 702.0 | 492.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.27 | 147.81 | 11.82 | 204.88 | 0.4587 | 602.0 | 554.2 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -19.97 | 147.69 | 11.70 | 204.95 | 0.4536 | 628.0 | 509.0 | |
| 0.54 | 1.54 | 0.30 | 0.86 | -20.80 | 147.42 | 11.43 | 203.65 | 0.4636 | 810.2 | 711.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.50 | 147.23 | 11.24 | 203.59 | 0.4581 | 913.0 | 752.4 | |
| 2.00 | 13.25 | 1.11 | 7.37 | -20.36 | 146.99 | 11.00 | 203.27 | 0.4547 | 1046.5 | 412.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -23.17 | 146.63 | 10.64 | 200.25 | 0.4925 | -627.0 | -530.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.76 | 146.13 | 10.14 | 200.45 | 0.4697 | -900.0 | -723.9 | |
| 0.36 | 2.27 | 0.20 | 1.26 | -20.95 | 145.87 | 9.88 | 200.63 | 0.4566 | -865.2 | -659.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.11 | 145.58 | 9.59 | 199.95 | 0.4574 | -825.0 | -761.9 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -21.55 | 145.21 | 9.22 | 198.91 | 0.4618 | -541.0 | -470.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.81 | 144.91 | 8.91 | 201.45 | 0.4051 | -963.0 | -885.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.61 | 144.92 | 8.93 | 198.30 | 0.4613 | -827.0 | -680.8 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -23.38 | 144.66 | 8.67 | 196.61 | 0.4860 | -678.0 | -580.3 | |
| 0.00 | 3.45 | 0.00 | 1.96 | -23.92 | 143.35 | 7.36 | 193.93 | 0.4886 | -768.0 | -592.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.37 | 142.29 | 6.30 | 193.85 | 0.4312 | -688.0 | -537.3 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -21.44 | 141.84 | 5.85 | 192.33 | 0.4460 | -827.0 | -679.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.62 | 140.59 | 4.60 | 188.93 | 0.4757 | -793.0 | -652.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -22.23 | 137.68 | 1.69 | 183.49 | 0.4493 | -701.0 | -573.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.83 | 121.41 | -14.58 | 147.39 | 0.4464 | -849.0 | -673.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -24.23 | 118.97 | -17.02 | 150.65 | 0.5466 | -725.0 | -530.0 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -32.42 | 117.16 | -18.83 | 155.38 | 0.6562 | -404.0 | -396.8 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -30.06 | 115.78 | -20.21 | 151.91 | 0.6374 | -492.0 | -442.8 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -26.35 | 112.63 | -23.36 | 144.84 | 0.6192 | -331.0 | -417.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
