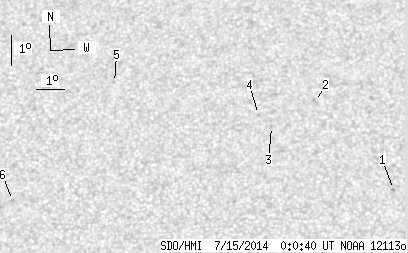

SDO HMI 2014-07-15 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.27 | 0.00 | 3.98 | 29.67 | 135.92 | 0.48 | 359.04 | 0.4338 | -390.2 | -377.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.49 | 27.50 | 140.29 | 4.86 | 349.21 | 0.4028 | -733.0 | -591.8 | |
| 0.00 | 2.81 | 0.00 | 1.55 | 30.47 | 137.68 | 2.24 | 355.63 | 0.4440 | -215.0 | -317.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 29.63 | 136.11 | 0.68 | 358.63 | 0.4296 | -776.0 | -610.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 30.03 | 135.66 | 0.22 | 359.56 | 0.4359 | -768.0 | -620.7 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 31.11 | 130.53 | -4.91 | 9.22 | 0.4590 | -555.0 | -445.7 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 27.13 | 127.20 | -8.24 | 18.17 | 0.4106 | 706.0 | 582.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
