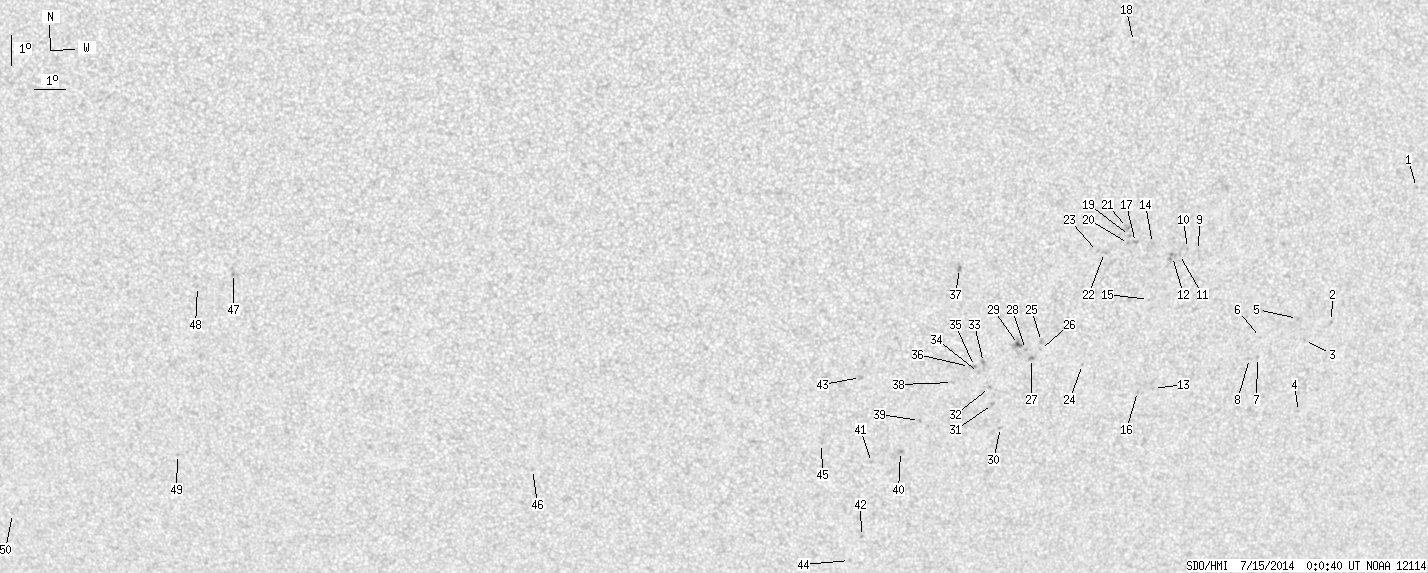

SDO HMI 2014-07-15 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 77.72 | 0.81 | 43.73 | -20.23 | 146.44 | 11.00 | 203.17 | 0.4737 | 124.6 | 121.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.47 | -15.53 | 159.95 | 24.51 | 230.22 | 0.5222 | 664.0 | 516.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -19.85 | 157.58 | 22.14 | 221.26 | 0.5396 | 526.0 | 513.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -20.46 | 156.72 | 21.28 | 219.39 | 0.5380 | 608.0 | 481.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -22.87 | 156.88 | 21.44 | 216.70 | 0.5658 | 501.0 | 458.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -19.71 | 156.37 | 20.93 | 219.89 | 0.5265 | 778.0 | 655.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -20.31 | 155.17 | 19.73 | 217.51 | 0.5221 | 734.0 | 633.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -20.98 | 155.16 | 19.72 | 216.67 | 0.5296 | 769.0 | 606.7 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -21.01 | 154.89 | 19.45 | 216.26 | 0.5275 | 665.0 | 573.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -17.37 | 152.73 | 17.29 | 217.77 | 0.4651 | 805.0 | 630.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -17.29 | 152.36 | 16.92 | 217.27 | 0.4606 | 676.0 | 584.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -17.48 | 152.11 | 16.67 | 216.61 | 0.4606 | 643.0 | 494.1 | |
| 0.00 | 4.54 | 0.00 | 2.53 | -17.54 | 151.88 | 16.44 | 216.16 | 0.4593 | 753.0 | 792.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.94 | 151.70 | 16.26 | 210.58 | 0.5126 | 685.0 | 572.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.10 | 151.18 | 15.74 | 215.58 | 0.4474 | 681.0 | 527.5 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -18.95 | 151.21 | 15.77 | 213.25 | 0.4708 | 637.0 | 537.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.03 | 151.16 | 15.72 | 209.66 | 0.5096 | 649.0 | 511.1 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -17.06 | 150.61 | 15.17 | 214.66 | 0.4417 | 973.0 | 759.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -10.60 | 150.13 | 14.69 | 224.36 | 0.3580 | 633.0 | 522.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -16.82 | 150.39 | 14.95 | 214.60 | 0.4368 | 770.0 | 662.4 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -17.08 | 150.38 | 14.94 | 214.22 | 0.4400 | 908.0 | 645.5 | |
| 0.00 | 3.63 | 0.00 | 1.99 | -16.56 | 150.31 | 14.87 | 214.80 | 0.4327 | 781.0 | 721.0 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -17.36 | 149.61 | 14.17 | 212.48 | 0.4370 | 789.0 | 674.0 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -17.33 | 149.38 | 13.94 | 212.10 | 0.4345 | 747.0 | 597.4 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.08 | 149.20 | 13.76 | 207.48 | 0.4829 | 752.0 | 633.2 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -20.28 | 147.76 | 12.32 | 205.78 | 0.4621 | 768.0 | 632.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -20.54 | 147.75 | 12.31 | 205.49 | 0.4657 | 582.0 | 456.7 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -20.84 | 147.47 | 12.03 | 204.70 | 0.4680 | 899.0 | 774.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.54 | 147.25 | 11.81 | 204.59 | 0.4623 | 865.0 | 718.5 | |
| 1.45 | 5.63 | 0.81 | 3.13 | -20.36 | 147.00 | 11.56 | 204.31 | 0.4583 | 1044.4 | 675.6 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -23.17 | 146.62 | 11.18 | 201.18 | 0.4955 | -657.0 | -570.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.38 | 146.29 | 10.85 | 201.23 | 0.4825 | -796.0 | -637.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.80 | 146.14 | 10.70 | 201.45 | 0.4734 | -884.0 | -738.8 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -20.95 | 145.88 | 10.44 | 201.69 | 0.4599 | -857.0 | -639.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.29 | 145.74 | 10.30 | 201.14 | 0.4639 | -622.0 | -477.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.08 | 145.59 | 10.15 | 201.04 | 0.4601 | -854.0 | -772.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.08 | 145.43 | 9.99 | 200.73 | 0.4591 | -779.0 | -598.4 | |
| 0.00 | 3.45 | 0.00 | 1.87 | -17.81 | 144.90 | 9.46 | 202.63 | 0.4085 | -991.0 | -790.8 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -21.61 | 144.90 | 9.46 | 199.30 | 0.4640 | -750.0 | -587.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.89 | 143.88 | 8.44 | 196.50 | 0.4779 | -837.0 | -680.1 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -23.95 | 143.31 | 7.87 | 194.82 | 0.4911 | -840.0 | -674.2 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -24.32 | 142.35 | 6.91 | 192.90 | 0.4931 | -672.0 | -437.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -26.93 | 142.16 | 6.72 | 191.38 | 0.5306 | -376.0 | -399.6 | |
| 0.00 | 2.36 | 0.00 | 1.31 | -21.40 | 141.84 | 6.40 | 193.47 | 0.4475 | -784.0 | -639.3 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -27.78 | 141.79 | 6.35 | 190.45 | 0.5419 | -124.0 | -200.7 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -23.65 | 140.64 | 5.20 | 190.05 | 0.4778 | -719.0 | -615.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.53 | 130.99 | -4.45 | 171.66 | 0.4893 | -654.0 | -443.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.01 | 121.47 | -13.97 | 148.72 | 0.4438 | -869.0 | -756.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -18.47 | 120.24 | -15.20 | 147.11 | 0.4599 | -627.0 | -559.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -24.17 | 118.91 | -16.52 | 151.31 | 0.5425 | -591.0 | -570.0 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -26.40 | 112.62 | -22.82 | 145.50 | 0.6155 | -596.0 | -513.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
