SDO HMI 2014-07-15 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.08 | 0.00 | 3.32 | 28.75 | 135.35 | 0.46 | 359.07 | 0.4198 | -416.3 | -342.3 | |
|
previous
or next observation for the same group /

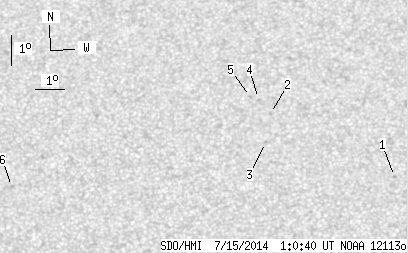

back to the solar disc SDO HMI 2014-07-15 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.59 | 27.47 | 140.33 | 5.44 | 347.94 | 0.4041 | -680.0 | -524.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 29.60 | 136.09 | 1.20 | 357.56 | 0.4293 | -695.0 | -539.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 28.63 | 135.90 | 1.01 | 357.84 | 0.4137 | -720.0 | -494.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 30.11 | 135.67 | 0.78 | 358.44 | 0.4371 | -511.0 | -563.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 30.18 | 135.39 | 0.50 | 359.01 | 0.4381 | -624.0 | -477.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 27.14 | 127.17 | -7.72 | 17.11 | 0.4082 | 732.0 | 646.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
