SDO HMI 2014-07-15 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 70.99 | 1.47 | 39.90 | -19.68 | 147.78 | 12.89 | 206.91 | 0.4711 | 120.4 | 209.5 | |
|
previous
or next observation for the same group /

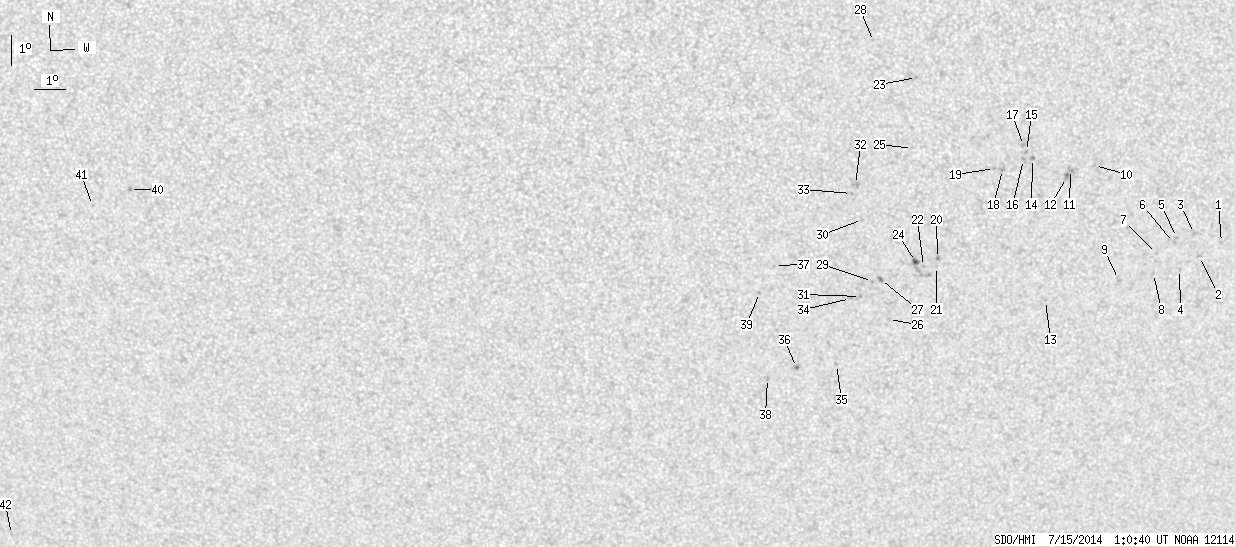

back to the solar disc SDO HMI 2014-07-15 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.91 | -20.02 | 157.40 | 22.51 | 221.49 | 0.5451 | 137.0 | 240.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -20.47 | 156.70 | 21.81 | 220.04 | 0.5431 | 550.0 | 429.5 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -19.69 | 156.41 | 21.52 | 220.68 | 0.5320 | 751.0 | 548.9 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -20.89 | 156.06 | 21.17 | 218.71 | 0.5417 | 560.0 | 471.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -19.81 | 155.80 | 20.91 | 219.73 | 0.5274 | 743.0 | 621.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -19.97 | 155.72 | 20.83 | 219.41 | 0.5285 | 531.0 | 506.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -20.32 | 155.18 | 20.29 | 218.25 | 0.5273 | 661.0 | 583.7 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -20.99 | 155.17 | 20.28 | 217.40 | 0.5348 | 678.0 | 508.4 | |
| 0.00 | 2.18 | 0.00 | 1.27 | -21.16 | 153.97 | 19.09 | 215.58 | 0.5262 | 655.0 | 544.4 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -17.34 | 152.71 | 17.83 | 218.63 | 0.4699 | 773.0 | 541.7 | |
| 0.00 | 3.09 | 0.00 | 1.72 | -17.45 | 151.92 | 17.03 | 217.23 | 0.4637 | 850.0 | 768.9 | |
| 0.00 | 3.54 | 0.00 | 1.98 | -17.71 | 151.81 | 16.92 | 216.70 | 0.4658 | 740.0 | 661.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.81 | 151.54 | 16.65 | 211.31 | 0.5140 | 771.0 | 614.5 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -17.06 | 150.62 | 15.73 | 215.62 | 0.4469 | 928.0 | 734.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -16.83 | 150.40 | 15.51 | 215.56 | 0.4420 | 798.0 | 671.3 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -17.09 | 150.32 | 15.44 | 215.08 | 0.4446 | 839.0 | 567.1 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -16.63 | 150.29 | 15.40 | 215.64 | 0.4385 | 910.0 | 805.2 | |
| 0.00 | 3.27 | 0.00 | 1.80 | -17.40 | 149.66 | 14.77 | 213.49 | 0.4427 | 772.0 | 655.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.36 | 149.39 | 14.50 | 213.06 | 0.4399 | 863.0 | 669.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.31 | 147.74 | 12.85 | 206.69 | 0.4664 | 764.0 | 690.1 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -20.58 | 147.73 | 12.84 | 206.40 | 0.4699 | 603.0 | 523.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.57 | 147.30 | 12.41 | 205.64 | 0.4669 | 888.0 | 643.5 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -14.36 | 146.65 | 11.77 | 211.80 | 0.3765 | 658.0 | 472.6 | |
| 1.82 | 11.26 | 1.01 | 6.30 | -20.40 | 147.02 | 12.13 | 205.30 | 0.4626 | 1019.0 | 594.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -16.66 | 146.66 | 11.77 | 208.73 | 0.4082 | -578.0 | -418.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.35 | 146.27 | 11.38 | 202.20 | 0.4852 | -662.0 | -471.9 | |
| 0.45 | 2.63 | 0.25 | 1.47 | -20.99 | 145.90 | 11.01 | 202.71 | 0.4638 | -749.6 | -595.6 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -13.18 | 145.22 | 10.34 | 210.26 | 0.3482 | 476.0 | 552.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.05 | 145.64 | 10.75 | 202.17 | 0.4631 | -820.0 | -656.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -18.97 | 145.17 | 10.28 | 203.18 | 0.4305 | -661.0 | -566.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.55 | 145.27 | 10.39 | 201.07 | 0.4682 | -745.0 | -671.4 | |
| 0.00 | 3.18 | 0.00 | 1.73 | -17.81 | 144.87 | 9.98 | 203.73 | 0.4119 | -952.0 | -764.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.10 | 144.76 | 9.87 | 203.19 | 0.4155 | -872.0 | -707.2 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -21.61 | 144.94 | 10.06 | 200.41 | 0.4673 | -765.0 | -644.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.87 | 144.64 | 9.75 | 198.19 | 0.4981 | -596.0 | -501.4 | |
| 0.36 | 1.36 | 0.21 | 0.77 | -23.95 | 143.29 | 8.41 | 195.77 | 0.4934 | -889.0 | -711.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.47 | 142.37 | 7.48 | 196.24 | 0.4378 | -688.0 | -533.1 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -24.32 | 142.34 | 7.45 | 193.86 | 0.4950 | -663.0 | -514.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.37 | 141.92 | 7.03 | 194.75 | 0.4495 | -813.0 | -656.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -18.00 | 121.45 | -13.44 | 149.66 | 0.4395 | -832.0 | -724.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -18.55 | 120.18 | -14.71 | 148.06 | 0.4570 | -756.0 | -593.1 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -30.09 | 115.71 | -19.17 | 153.15 | 0.6315 | -398.0 | -468.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
