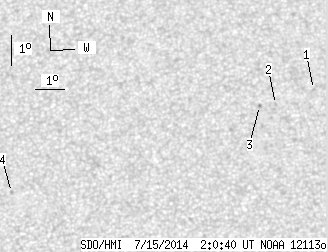

SDO HMI 2014-07-15 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.72 | 0.00 | 2.59 | 29.41 | 133.99 | -0.34 | 1.18 | 0.4310 | -353.2 | -288.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.65 | 30.59 | 137.60 | 3.27 | 353.67 | 0.4471 | -675.0 | -513.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 30.08 | 136.25 | 1.91 | 356.20 | 0.4374 | -664.0 | -584.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 30.05 | 135.68 | 1.35 | 357.32 | 0.4364 | -743.0 | -654.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 27.12 | 127.13 | -7.20 | 16.05 | 0.4054 | 669.0 | 539.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
