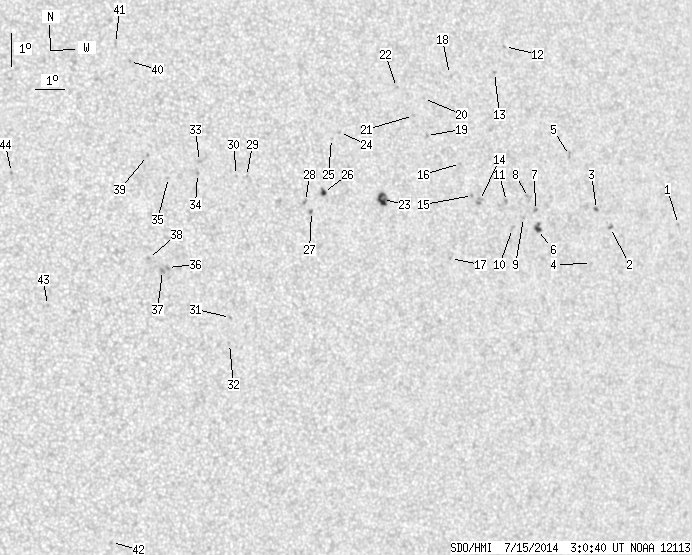

SDO HMI 2014-07-15 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.63 | 79.12 | 6.71 | 45.29 | 7.94 | 163.29 | 29.50 | 278.67 | 0.4944 | 63.0 | -45.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.59 | 6.73 | 173.91 | 40.12 | 275.31 | 0.6450 | -465.0 | -361.8 | |
| 0.36 | 1.82 | 0.23 | 1.13 | 6.77 | 171.23 | 37.44 | 275.48 | 0.6087 | -697.0 | -502.9 | |
| 0.64 | 2.00 | 0.39 | 1.24 | 7.34 | 170.74 | 36.95 | 276.46 | 0.6022 | -577.1 | -516.4 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 5.70 | 170.40 | 36.62 | 273.74 | 0.5970 | -231.0 | -353.8 | |
| 0.00 | 2.27 | 0.00 | 1.39 | 9.03 | 169.89 | 36.10 | 279.40 | 0.5920 | -529.0 | -470.2 | |
| 2.36 | 5.18 | 1.42 | 3.12 | 6.83 | 168.45 | 34.67 | 275.76 | 0.5698 | -775.0 | -686.7 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 7.41 | 168.43 | 34.64 | 276.78 | 0.5698 | -760.0 | -647.8 | |
| 0.00 | 3.36 | 0.00 | 2.02 | 7.82 | 168.21 | 34.42 | 277.52 | 0.5670 | -601.0 | -597.8 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 7.22 | 167.96 | 34.18 | 276.48 | 0.5630 | -640.0 | -652.5 | |
| 0.00 | 2.45 | 0.00 | 1.46 | 6.90 | 167.53 | 33.74 | 275.95 | 0.5565 | -647.0 | -543.9 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 7.73 | 167.38 | 33.59 | 277.47 | 0.5550 | -706.0 | -565.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 12.47 | 167.88 | 34.09 | 285.75 | 0.5708 | 572.0 | 501.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 11.69 | 167.39 | 33.60 | 284.53 | 0.5620 | 515.0 | 436.2 | |
| 0.00 | 4.72 | 0.00 | 2.78 | 7.80 | 166.39 | 32.61 | 277.72 | 0.5408 | -685.0 | -655.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 7.97 | 166.15 | 32.36 | 278.06 | 0.5375 | -835.0 | -691.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 8.96 | 165.81 | 32.02 | 279.97 | 0.5339 | -627.0 | -466.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 6.08 | 165.21 | 31.42 | 274.58 | 0.5221 | 705.0 | 582.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 11.70 | 165.72 | 31.94 | 285.07 | 0.5385 | 245.0 | 247.0 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 9.86 | 164.67 | 30.88 | 281.95 | 0.5189 | 217.0 | 342.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 11.00 | 164.69 | 30.90 | 284.11 | 0.5218 | 360.0 | 343.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 10.49 | 164.27 | 30.48 | 283.27 | 0.5145 | 299.0 | 314.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 11.37 | 163.76 | 29.97 | 285.15 | 0.5094 | 241.0 | 351.7 | |
| 6.45 | 10.62 | 3.66 | 6.03 | 7.97 | 162.92 | 29.14 | 278.61 | 0.4896 | -928.5 | -749.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 10.07 | 161.60 | 27.81 | 283.31 | 0.4739 | 404.0 | 391.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 9.90 | 161.30 | 27.51 | 283.05 | 0.4690 | -397.0 | -409.2 | |
| 1.82 | 3.99 | 1.01 | 2.23 | 8.26 | 160.88 | 27.10 | 279.66 | 0.4591 | -894.4 | -666.1 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 7.69 | 160.43 | 26.64 | 278.53 | 0.4512 | 818.0 | 659.9 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 8.01 | 160.24 | 26.46 | 279.26 | 0.4488 | 812.0 | 646.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 8.84 | 158.29 | 24.50 | 281.76 | 0.4203 | 572.0 | 514.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 8.88 | 157.95 | 24.17 | 281.98 | 0.4152 | 651.0 | 520.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 4.55 | 157.52 | 23.73 | 271.47 | 0.4030 | 710.0 | 587.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 3.76 | 157.46 | 23.67 | 269.50 | 0.4023 | 659.0 | 492.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 9.34 | 156.74 | 22.95 | 283.63 | 0.3976 | 755.0 | 550.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.98 | 156.65 | 22.86 | 282.76 | 0.3951 | 937.0 | 804.8 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 8.88 | 155.67 | 21.88 | 282.97 | 0.3795 | 668.0 | 513.5 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 6.14 | 155.49 | 21.70 | 275.74 | 0.3711 | 856.0 | 731.2 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 6.05 | 155.32 | 21.53 | 275.53 | 0.3683 | 876.0 | 716.6 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 6.43 | 154.88 | 21.09 | 276.66 | 0.3615 | 883.0 | 616.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 9.58 | 155.02 | 21.23 | 285.12 | 0.3715 | 737.0 | 661.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.47 | 154.64 | 20.86 | 292.86 | 0.3788 | 719.0 | 648.9 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 13.04 | 154.22 | 20.44 | 294.65 | 0.3759 | 691.0 | 512.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -2.20 | 153.54 | 19.75 | 252.07 | 0.3565 | 738.0 | 598.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 5.09 | 151.55 | 17.76 | 273.17 | 0.3056 | 781.0 | 668.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 9.17 | 150.55 | 16.76 | 287.09 | 0.2992 | 771.0 | 606.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
