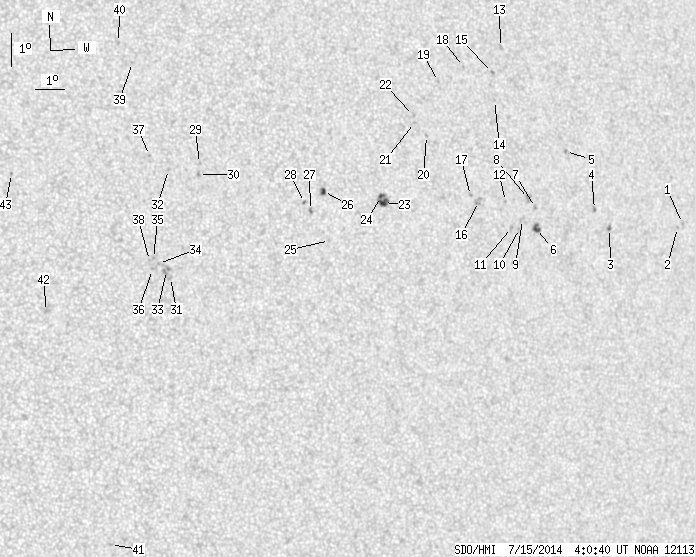

SDO HMI 2014-07-15 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 84.11 | 6.96 | 48.53 | 7.97 | 163.50 | 30.26 | 278.47 | 0.5053 | 20.6 | -40.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.89 | 6.76 | 174.17 | 40.93 | 275.32 | 0.6557 | -138.0 | -249.5 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 6.64 | 173.95 | 40.71 | 275.16 | 0.6528 | -303.0 | -384.2 | |
| 0.54 | 1.73 | 0.34 | 1.08 | 6.74 | 171.26 | 38.02 | 275.42 | 0.6166 | -668.8 | -528.0 | |
| 0.00 | 2.00 | 0.00 | 1.25 | 7.35 | 170.73 | 37.49 | 276.44 | 0.6097 | -395.0 | -526.5 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 9.17 | 169.81 | 36.57 | 279.55 | 0.5987 | -422.0 | -465.3 | |
| 3.27 | 5.63 | 1.98 | 3.41 | 6.87 | 168.47 | 35.23 | 275.79 | 0.5778 | -787.0 | -606.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 7.51 | 168.49 | 35.25 | 276.90 | 0.5785 | -698.0 | -580.8 | |
| 0.00 | 4.45 | 0.00 | 2.69 | 7.80 | 168.25 | 35.01 | 277.42 | 0.5754 | -798.0 | -586.6 | |
| 0.00 | 3.09 | 0.00 | 1.86 | 7.17 | 167.97 | 34.73 | 276.34 | 0.5709 | -767.0 | -485.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 6.90 | 167.83 | 34.59 | 275.88 | 0.5688 | -718.0 | -590.3 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 6.94 | 167.54 | 34.30 | 275.98 | 0.5646 | -665.0 | -560.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 7.75 | 167.39 | 34.15 | 277.42 | 0.5630 | -792.0 | -619.8 | |
| 0.00 | 2.36 | 0.00 | 1.43 | 12.46 | 167.78 | 34.54 | 285.58 | 0.5769 | 496.0 | 394.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 10.85 | 167.32 | 34.09 | 282.91 | 0.5668 | -442.0 | -426.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 11.71 | 167.37 | 34.13 | 284.40 | 0.5693 | 471.0 | 356.8 | |
| 0.00 | 4.72 | 0.00 | 2.79 | 7.79 | 166.39 | 33.15 | 277.61 | 0.5487 | -856.0 | -668.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 7.98 | 166.11 | 32.87 | 278.01 | 0.5449 | -599.0 | -616.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 11.94 | 166.31 | 33.07 | 285.12 | 0.5552 | 290.0 | 347.1 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 11.51 | 165.33 | 32.09 | 284.67 | 0.5402 | 628.0 | 470.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 9.88 | 164.70 | 31.46 | 281.82 | 0.5273 | 470.0 | 430.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 10.29 | 164.31 | 31.07 | 282.71 | 0.5226 | 553.0 | 479.6 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 10.51 | 164.30 | 31.06 | 283.12 | 0.5229 | 307.0 | 385.6 | |
| 4.45 | 12.08 | 2.54 | 6.89 | 7.89 | 162.97 | 29.73 | 278.33 | 0.4984 | -914.6 | -712.5 | |
| 1.73 | -23.00 | 0.98 | -23.00 | 8.08 | 162.91 | 29.67 | 278.72 | 0.4978 | -856.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 6.81 | 160.99 | 27.75 | 276.39 | 0.4672 | -526.0 | -448.8 | |
| 2.00 | 3.09 | 1.12 | 1.73 | 8.31 | 160.89 | 27.65 | 279.62 | 0.4677 | -890.6 | -800.7 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 7.74 | 160.40 | 27.16 | 278.52 | 0.4592 | 637.0 | 562.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 7.99 | 160.21 | 26.97 | 279.11 | 0.4567 | 695.0 | 571.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 9.30 | 156.72 | 23.48 | 283.28 | 0.4057 | 432.0 | 456.9 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 8.97 | 156.67 | 23.43 | 282.48 | 0.4039 | 932.0 | 696.7 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 5.86 | 155.56 | 22.32 | 274.87 | 0.3807 | 811.0 | 613.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 9.15 | 155.67 | 22.43 | 283.38 | 0.3889 | 749.0 | 579.1 | |
| 0.00 | 4.81 | 0.00 | 2.57 | 6.07 | 155.43 | 22.19 | 275.46 | 0.3789 | 537.0 | 700.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 6.29 | 155.18 | 21.94 | 276.09 | 0.3751 | 874.0 | 716.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 6.45 | 155.02 | 21.78 | 276.54 | 0.3727 | 778.0 | 632.2 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 6.12 | 154.97 | 21.73 | 275.65 | 0.3715 | 695.0 | 595.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 9.60 | 155.07 | 21.83 | 284.83 | 0.3809 | 769.0 | 648.3 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 6.39 | 154.88 | 21.65 | 276.42 | 0.3705 | 796.0 | 674.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 12.46 | 154.73 | 21.49 | 292.28 | 0.3882 | 749.0 | 621.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 13.09 | 154.31 | 21.07 | 294.17 | 0.3855 | 631.0 | 505.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -2.24 | 153.48 | 20.24 | 252.38 | 0.3642 | 783.0 | 573.6 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 4.93 | 151.47 | 18.23 | 272.60 | 0.3134 | 750.0 | 618.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 9.16 | 150.52 | 17.28 | 286.63 | 0.3073 | 849.0 | 668.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
