SDO HMI 2014-07-15 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.35 | 79.79 | 5.41 | 46.76 | 8.00 | 164.55 | 31.86 | 278.24 | 0.5292 | -154.3 | -183.7 | |
|
previous
or next observation for the same group /

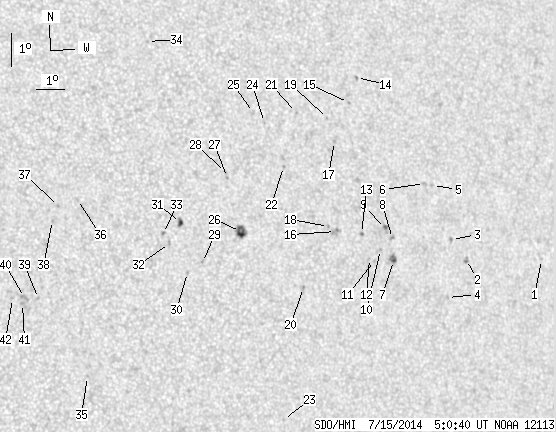

back to the solar disc SDO HMI 2014-07-15 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.60 | 6.60 | 174.30 | 41.61 | 275.06 | 0.6645 | -493.0 | -403.3 | |
| 0.00 | 2.91 | 0.00 | 1.84 | 6.75 | 171.30 | 38.61 | 275.39 | 0.6246 | -729.0 | -566.3 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 7.39 | 170.77 | 38.08 | 276.45 | 0.6178 | -670.0 | -532.4 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 5.63 | 170.46 | 37.77 | 273.59 | 0.6129 | -346.0 | -325.1 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 9.07 | 170.22 | 37.53 | 279.24 | 0.6117 | -374.0 | -309.2 | |
| 0.00 | 2.18 | 0.00 | 1.36 | 9.14 | 169.92 | 37.23 | 279.41 | 0.6077 | -750.0 | -550.5 | |
| 1.27 | 5.72 | 0.78 | 3.49 | 6.85 | 168.49 | 35.79 | 275.70 | 0.5858 | -870.4 | -651.8 | |
| 0.00 | 2.18 | 0.00 | 1.33 | 7.52 | 168.51 | 35.82 | 276.85 | 0.5865 | -761.0 | -514.0 | |
| 0.00 | 3.36 | 0.00 | 2.05 | 7.84 | 168.28 | 35.58 | 277.42 | 0.5835 | -737.0 | -658.7 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 7.21 | 168.03 | 35.34 | 276.35 | 0.5795 | -628.0 | -621.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 6.88 | 167.77 | 35.08 | 275.81 | 0.5757 | -473.0 | -418.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 6.95 | 167.59 | 34.90 | 275.94 | 0.5731 | -727.0 | -795.8 | |
| 0.36 | 1.45 | 0.22 | 0.88 | 7.73 | 167.36 | 34.67 | 277.32 | 0.5704 | -661.8 | -559.9 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 12.50 | 167.77 | 35.08 | 285.48 | 0.5844 | 510.0 | 429.7 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 11.75 | 167.36 | 34.66 | 284.32 | 0.5769 | 287.0 | 364.5 | |
| 0.00 | 5.99 | 0.00 | 3.57 | 7.83 | 166.40 | 33.71 | 277.61 | 0.5568 | -904.0 | -679.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 10.58 | 166.67 | 33.98 | 282.46 | 0.5647 | -76.0 | -90.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 7.99 | 166.16 | 33.47 | 277.94 | 0.5535 | -545.0 | -528.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 11.29 | 166.50 | 33.81 | 283.76 | 0.5639 | 528.0 | 506.5 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 6.17 | 165.09 | 32.40 | 274.69 | 0.5366 | 360.0 | 413.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 11.52 | 165.38 | 32.68 | 284.50 | 0.5486 | 328.0 | 427.0 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 9.89 | 164.70 | 32.01 | 281.69 | 0.5353 | 243.0 | 384.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 2.18 | 164.18 | 31.49 | 267.09 | 0.5247 | -335.0 | -318.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 11.26 | 164.17 | 31.47 | 284.40 | 0.5307 | 404.0 | 288.3 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 11.59 | 163.81 | 31.11 | 285.13 | 0.5264 | 609.0 | 500.3 | |
| 5.90 | 10.26 | 3.39 | 5.89 | 7.97 | 162.96 | 30.27 | 278.38 | 0.5066 | -970.1 | -731.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 9.63 | 162.65 | 29.96 | 281.73 | 0.5048 | -636.0 | -502.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 9.79 | 162.59 | 29.90 | 282.06 | 0.5043 | -433.0 | -451.6 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 7.07 | 161.55 | 28.86 | 276.79 | 0.4843 | -725.0 | -636.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 6.79 | 161.00 | 28.31 | 276.27 | 0.4757 | -556.0 | -480.7 | |
| 1.82 | 3.81 | 1.02 | 2.15 | 8.32 | 160.87 | 28.18 | 279.52 | 0.4757 | -909.5 | -714.2 | |
| 0.00 | 2.00 | 0.00 | 1.12 | 7.70 | 160.44 | 27.75 | 278.28 | 0.4681 | 533.0 | 409.0 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 8.01 | 160.25 | 27.56 | 278.99 | 0.4658 | 796.0 | 655.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 13.91 | 160.30 | 27.61 | 291.22 | 0.4845 | -403.0 | -373.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 3.74 | 157.43 | 24.74 | 269.52 | 0.4194 | 409.0 | 340.5 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 9.15 | 157.38 | 24.69 | 282.39 | 0.4240 | 354.0 | 303.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.95 | 156.72 | 24.03 | 282.19 | 0.4133 | 909.0 | 748.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 8.53 | 156.49 | 23.80 | 281.26 | 0.4086 | 748.0 | 576.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 6.17 | 155.89 | 23.19 | 275.54 | 0.3951 | 783.0 | 617.5 | |
| 0.00 | 3.72 | 0.00 | 2.00 | 6.21 | 155.42 | 22.73 | 275.73 | 0.3877 | 880.0 | 750.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 6.03 | 155.35 | 22.66 | 275.27 | 0.3863 | 713.0 | 581.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 6.19 | 155.02 | 22.33 | 275.75 | 0.3813 | 755.0 | 677.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
