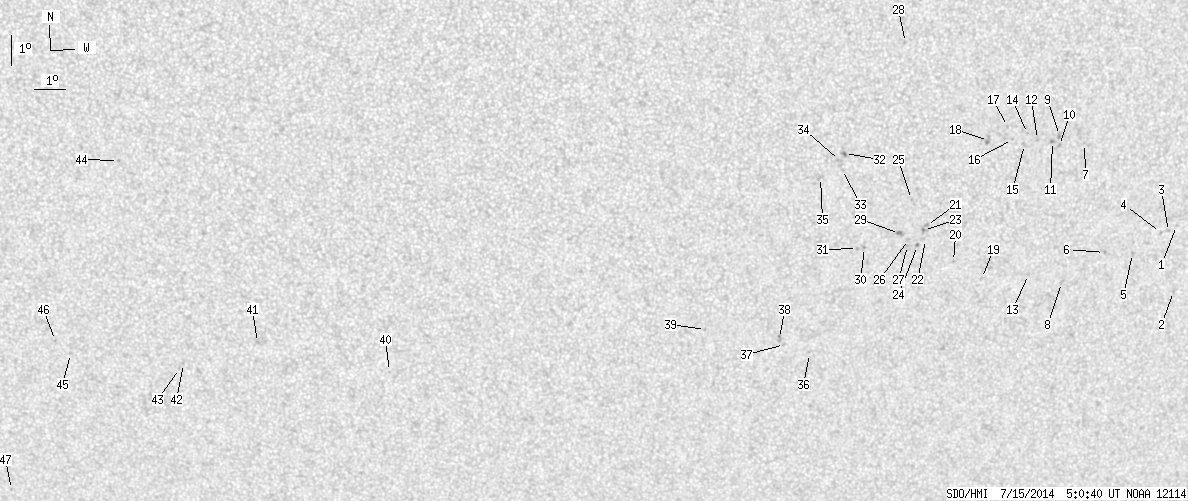

SDO HMI 2014-07-15 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 70.39 | 0.00 | 40.09 | -20.41 | 145.88 | 13.19 | 206.67 | 0.4930 | 147.0 | 156.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.33 | -20.52 | 156.59 | 23.90 | 222.49 | 0.5639 | 447.0 | 404.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -22.76 | 156.88 | 24.19 | 220.06 | 0.5893 | 423.0 | 418.9 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -20.71 | 156.34 | 23.65 | 221.95 | 0.5634 | 556.0 | 466.6 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -20.73 | 156.06 | 23.37 | 221.59 | 0.5610 | 537.0 | 432.1 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -21.41 | 155.18 | 22.49 | 219.68 | 0.5597 | 592.0 | 443.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -21.35 | 154.18 | 21.49 | 218.52 | 0.5499 | 811.0 | 601.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -17.68 | 152.99 | 20.30 | 221.74 | 0.4985 | 601.0 | 535.1 | |
| 0.00 | 2.27 | 0.00 | 1.34 | -22.33 | 152.81 | 20.12 | 215.60 | 0.5488 | 658.0 | 529.2 | |
| 0.00 | 2.63 | 0.00 | 1.49 | -17.40 | 152.11 | 19.42 | 220.90 | 0.4864 | 789.0 | 585.0 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -17.73 | 152.14 | 19.45 | 220.49 | 0.4905 | 584.0 | 490.6 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -17.59 | 151.89 | 19.20 | 220.32 | 0.4864 | 823.0 | 677.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -17.51 | 151.38 | 18.68 | 219.67 | 0.4805 | 440.0 | 415.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.02 | 151.62 | 18.93 | 214.34 | 0.5352 | 612.0 | 502.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -17.30 | 151.02 | 18.33 | 219.43 | 0.4746 | 422.0 | 392.5 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -17.66 | 150.95 | 18.26 | 218.83 | 0.4781 | 612.0 | 476.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -17.49 | 150.53 | 17.84 | 218.43 | 0.4720 | 597.0 | 443.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -17.05 | 150.32 | 17.63 | 218.70 | 0.4649 | 358.0 | 414.8 | |
| 0.00 | 3.45 | 0.00 | 1.93 | -17.50 | 149.73 | 17.04 | 217.15 | 0.4646 | 842.0 | 681.9 | |
| 0.00 | 1.73 | 0.00 | 1.00 | -22.11 | 150.00 | 17.31 | 211.93 | 0.5232 | 259.0 | 351.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.51 | 148.97 | 16.28 | 211.05 | 0.5076 | 637.0 | 496.8 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -20.28 | 147.92 | 15.23 | 210.76 | 0.4837 | 647.0 | 585.3 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -20.75 | 147.93 | 15.24 | 210.26 | 0.4899 | 348.0 | 417.2 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -20.44 | 147.84 | 15.14 | 210.44 | 0.4852 | 839.0 | 641.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -20.94 | 147.68 | 14.99 | 209.64 | 0.4905 | 717.0 | 510.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.39 | 147.33 | 14.64 | 210.79 | 0.4677 | 542.0 | 503.7 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -20.73 | 147.36 | 14.67 | 209.33 | 0.4854 | 668.0 | 484.6 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -20.93 | 147.35 | 14.65 | 209.09 | 0.4879 | 237.0 | 279.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -14.25 | 146.74 | 14.05 | 216.62 | 0.3961 | 612.0 | 502.4 | |
| 0.00 | 2.91 | 0.00 | 1.64 | -20.52 | 147.04 | 14.35 | 209.02 | 0.4802 | 1024.0 | 803.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.97 | 145.90 | 13.21 | 206.63 | 0.4781 | -627.0 | -550.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.00 | 145.67 | 12.98 | 206.20 | 0.4769 | -446.0 | -449.7 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -17.83 | 144.99 | 12.30 | 208.37 | 0.4286 | -913.0 | -778.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -18.35 | 144.96 | 12.27 | 207.71 | 0.4357 | -400.0 | -433.5 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -18.05 | 144.84 | 12.15 | 207.82 | 0.4307 | -436.0 | -522.1 | |
| 0.00 | 2.82 | 0.00 | 1.55 | -18.60 | 144.26 | 11.57 | 206.07 | 0.4341 | -674.0 | -534.0 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -24.58 | 144.37 | 11.68 | 200.90 | 0.5180 | -487.0 | -344.8 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.25 | 143.49 | 10.80 | 199.69 | 0.5089 | -318.0 | -384.4 | |
| 0.00 | 3.09 | 0.00 | 1.77 | -24.04 | 143.30 | 10.61 | 199.53 | 0.5050 | -957.0 | -660.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.69 | 140.77 | 8.08 | 195.35 | 0.4885 | -540.0 | -438.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -25.09 | 130.20 | -2.49 | 175.42 | 0.4949 | -268.0 | -389.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -24.11 | 125.80 | -6.89 | 167.03 | 0.4902 | -605.0 | -394.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.86 | 123.24 | -9.45 | 162.99 | 0.5112 | -741.0 | -481.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -25.04 | 123.09 | -9.60 | 162.85 | 0.5144 | -724.0 | -577.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -18.01 | 121.57 | -11.12 | 154.17 | 0.4226 | -617.0 | -597.2 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -24.57 | 119.40 | -13.29 | 156.53 | 0.5271 | -332.0 | -317.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -24.13 | 118.93 | -13.76 | 155.43 | 0.5240 | -688.0 | -564.8 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -29.48 | 116.64 | -16.05 | 156.52 | 0.6063 | -553.0 | -527.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
