SDO HMI 2014-07-15 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 63.47 | 0.36 | 36.07 | -19.92 | 146.26 | 14.12 | 208.24 | 0.4892 | 111.7 | 121.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 06:00:40 UT

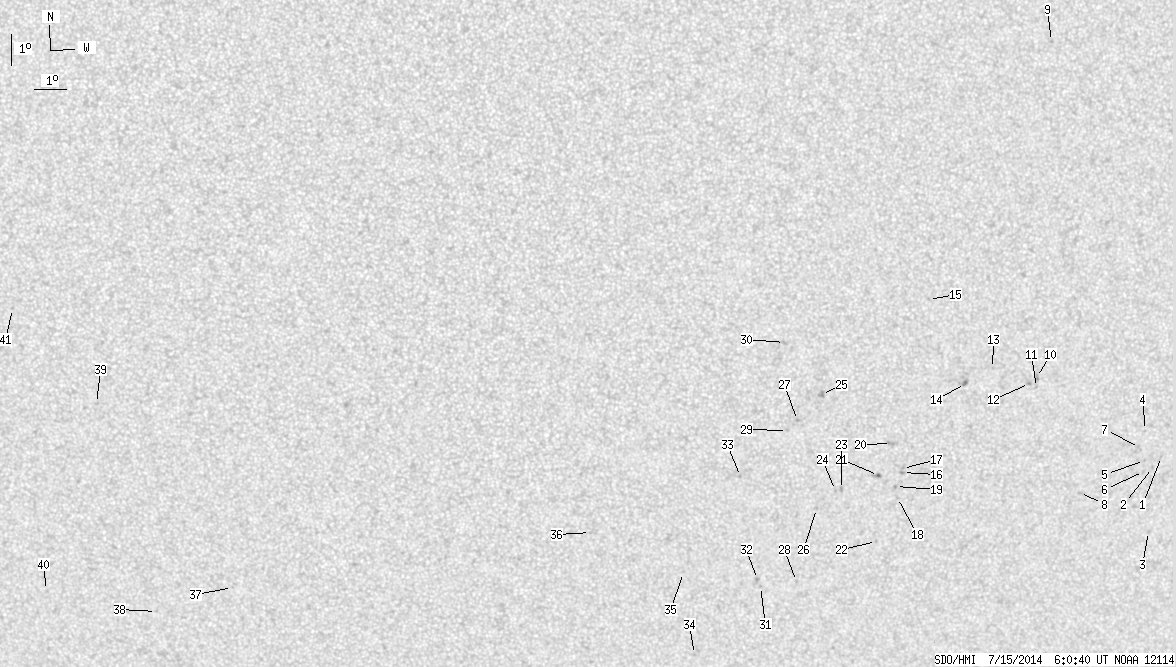

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.49 | -20.17 | 156.85 | 24.70 | 223.84 | 0.5684 | 604.0 | 495.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -20.53 | 156.59 | 24.44 | 223.09 | 0.5694 | 523.0 | 438.3 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -22.71 | 156.83 | 24.69 | 220.68 | 0.5934 | 209.0 | 336.6 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -19.28 | 156.13 | 23.99 | 224.20 | 0.5525 | 540.0 | 423.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -20.29 | 156.26 | 24.11 | 223.03 | 0.5637 | 694.0 | 576.8 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -20.66 | 156.28 | 24.14 | 222.58 | 0.5677 | 580.0 | 466.7 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -19.84 | 156.01 | 23.87 | 223.32 | 0.5569 | 700.0 | 501.0 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -21.29 | 154.11 | 21.97 | 219.19 | 0.5537 | 556.0 | 549.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -6.72 | 151.79 | 19.64 | 240.69 | 0.3845 | 805.0 | 635.0 | |
| 0.00 | 2.45 | 0.00 | 1.39 | -17.41 | 152.10 | 19.96 | 221.65 | 0.4921 | 893.0 | 691.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -17.74 | 152.14 | 20.00 | 221.24 | 0.4961 | 661.0 | 538.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -17.60 | 151.89 | 19.74 | 221.08 | 0.4920 | 963.0 | 756.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -17.07 | 150.58 | 18.44 | 219.91 | 0.4731 | 735.0 | 589.2 | |
| 0.00 | 2.91 | 0.00 | 1.63 | -17.54 | 149.72 | 17.58 | 217.94 | 0.4702 | 835.0 | 717.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -14.77 | 148.25 | 16.11 | 219.57 | 0.4229 | 668.0 | 580.9 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -20.45 | 147.90 | 15.75 | 211.40 | 0.4902 | 721.0 | 603.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -20.32 | 147.88 | 15.74 | 211.54 | 0.4883 | 799.0 | 672.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -21.29 | 147.82 | 15.67 | 210.34 | 0.5002 | 500.0 | 423.9 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -20.92 | 147.71 | 15.57 | 210.58 | 0.4946 | 906.0 | 699.6 | |
| 0.00 | 3.27 | 0.00 | 1.84 | -19.47 | 147.43 | 15.28 | 211.78 | 0.4739 | 698.0 | 656.6 | |
| 0.64 | 4.00 | 0.36 | 2.26 | -20.53 | 147.10 | 14.95 | 210.01 | 0.4850 | 1018.3 | 674.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.78 | 147.27 | 15.12 | 207.95 | 0.5153 | 203.0 | 122.9 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -20.98 | 145.89 | 13.75 | 207.53 | 0.4820 | -778.0 | -523.8 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -21.01 | 145.69 | 13.55 | 207.17 | 0.4810 | -827.0 | -683.9 | |
| 0.00 | 3.81 | 0.00 | 2.09 | -17.80 | 144.97 | 12.82 | 209.40 | 0.4323 | -979.0 | -813.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.61 | 145.11 | 12.97 | 205.58 | 0.4851 | -723.0 | -440.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -18.64 | 144.24 | 12.09 | 207.04 | 0.4384 | -905.0 | -735.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -24.10 | 144.67 | 12.52 | 202.64 | 0.5163 | -153.0 | -249.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -18.97 | 143.93 | 11.79 | 206.11 | 0.4408 | -710.0 | -588.1 | |
| 0.00 | 2.54 | 0.00 | 1.37 | -16.07 | 143.65 | 11.50 | 208.89 | 0.3984 | -404.0 | -351.6 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.25 | 143.45 | 11.31 | 200.54 | 0.5117 | -420.0 | -433.9 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -24.01 | 143.33 | 11.18 | 200.51 | 0.5076 | -888.0 | -672.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.48 | 142.49 | 10.34 | 201.89 | 0.4530 | -792.0 | -622.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -26.61 | 141.39 | 9.24 | 195.63 | 0.5352 | -163.0 | -275.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -23.73 | 140.80 | 8.66 | 196.35 | 0.4915 | -644.0 | -449.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -22.32 | 137.62 | 5.48 | 191.15 | 0.4589 | -434.0 | -489.4 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -24.20 | 125.71 | -6.43 | 167.92 | 0.4902 | -575.0 | -496.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -25.07 | 123.09 | -9.06 | 163.78 | 0.5125 | -689.0 | -549.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -18.03 | 121.58 | -10.56 | 155.32 | 0.4193 | -795.0 | -607.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -24.39 | 119.39 | -12.76 | 157.22 | 0.5215 | -399.0 | -456.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -14.97 | 119.04 | -13.10 | 146.34 | 0.3967 | 721.0 | 490.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
