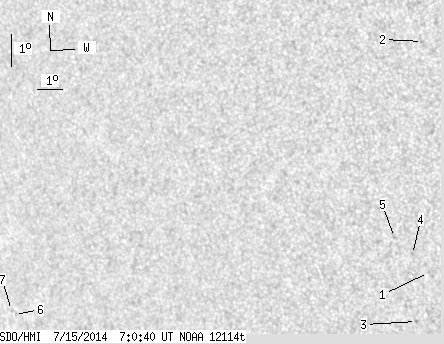

SDO HMI 2014-07-15 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.71 | 0.00 | 4.90 | -10.87 | 96.55 | -35.05 | 114.12 | 0.6142 | 331.4 | 243.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.59 | -11.34 | 101.70 | -29.90 | 118.06 | 0.5560 | 659.0 | 510.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -4.13 | 102.06 | -29.54 | 105.63 | 0.5126 | 586.0 | 459.1 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -12.92 | 101.06 | -30.53 | 120.06 | 0.5743 | 664.0 | 451.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -10.79 | 101.18 | -30.41 | 116.78 | 0.5591 | 702.0 | 591.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -10.28 | 100.59 | -31.00 | 115.51 | 0.5637 | 707.0 | 479.8 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -13.48 | 84.73 | -46.87 | 111.73 | 0.7662 | -617.0 | -552.7 | |
| 0.00 | 1.27 | 0.00 | 0.98 | -13.36 | 84.62 | -46.98 | 111.54 | 0.7669 | -381.0 | -326.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
