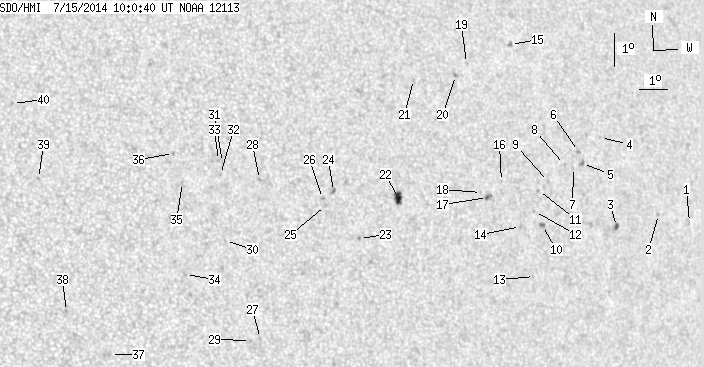

SDO HMI 2014-07-15 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.09 | 62.76 | 4.88 | 37.78 | 8.07 | 163.99 | 34.04 | 278.13 | 0.5594 | -60.7 | -91.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.88 | 6.67 | 174.52 | 44.57 | 275.10 | 0.7021 | -505.0 | -476.2 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 6.98 | 173.23 | 43.28 | 275.58 | 0.6860 | -710.0 | -558.7 | |
| 1.18 | 2.91 | 0.78 | 1.92 | 6.71 | 171.45 | 41.50 | 275.21 | 0.6631 | -731.4 | -584.0 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 9.45 | 171.14 | 41.19 | 279.39 | 0.6607 | -573.0 | -467.0 | |
| 0.00 | 2.54 | 0.00 | 1.65 | 8.70 | 170.30 | 40.35 | 278.32 | 0.6491 | -745.0 | -631.2 | |
| 0.00 | 1.82 | 0.00 | 1.18 | 9.07 | 170.19 | 40.24 | 278.91 | 0.6479 | -753.0 | -561.0 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 8.59 | 169.92 | 39.97 | 278.20 | 0.6440 | -673.0 | -470.9 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 8.70 | 169.57 | 39.62 | 278.40 | 0.6395 | -215.0 | -121.8 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 8.21 | 168.88 | 38.92 | 277.70 | 0.6297 | -671.0 | -582.1 | |
| 0.00 | 3.00 | 0.00 | 1.90 | 6.88 | 168.49 | 38.54 | 275.60 | 0.6238 | -753.0 | -647.3 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 7.96 | 168.45 | 38.50 | 277.33 | 0.6238 | -813.0 | -704.3 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 7.33 | 168.22 | 38.27 | 276.32 | 0.6203 | -788.0 | -614.7 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 5.35 | 168.05 | 38.10 | 273.12 | 0.6174 | -551.0 | -553.1 | |
| 0.00 | 1.73 | 0.00 | 1.08 | 6.89 | 167.63 | 37.68 | 275.66 | 0.6121 | -759.0 | -638.8 | |
| 0.00 | 1.91 | 0.00 | 1.21 | 12.47 | 167.99 | 38.04 | 284.62 | 0.6241 | 757.0 | 642.0 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 8.30 | 167.04 | 37.09 | 278.02 | 0.6049 | -604.0 | -554.3 | |
| 0.73 | 3.54 | 0.45 | 2.18 | 7.84 | 166.45 | 36.50 | 277.31 | 0.5963 | -871.6 | -712.5 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 8.00 | 166.24 | 36.29 | 277.60 | 0.5935 | -652.0 | -482.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 11.97 | 166.18 | 36.23 | 284.25 | 0.5988 | 370.0 | 353.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 11.62 | 165.71 | 35.75 | 283.79 | 0.5915 | 749.0 | 564.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 11.56 | 164.10 | 34.15 | 284.13 | 0.5692 | 806.0 | 654.9 | |
| 6.18 | 8.90 | 3.65 | 5.27 | 7.98 | 163.12 | 33.17 | 277.94 | 0.5492 | -938.2 | -652.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 6.79 | 161.60 | 31.65 | 275.90 | 0.5259 | -756.0 | -623.9 | |
| 0.00 | 2.27 | 0.00 | 1.31 | 8.26 | 160.78 | 30.83 | 278.83 | 0.5153 | -875.0 | -758.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 7.85 | 160.46 | 30.51 | 278.08 | 0.5100 | 612.0 | 357.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 8.06 | 160.37 | 30.42 | 278.52 | 0.5090 | 765.0 | 659.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 3.88 | 157.94 | 27.99 | 270.08 | 0.4701 | 664.0 | 474.1 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 8.73 | 158.20 | 28.25 | 280.33 | 0.4774 | 747.0 | 604.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 3.83 | 157.59 | 27.64 | 269.95 | 0.4648 | 532.0 | 532.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 6.91 | 156.88 | 26.93 | 276.70 | 0.4546 | 668.0 | 448.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 9.29 | 156.96 | 27.01 | 281.89 | 0.4598 | 581.0 | 531.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 8.93 | 156.86 | 26.91 | 281.13 | 0.4575 | 750.0 | 535.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 9.36 | 156.82 | 26.87 | 282.07 | 0.4579 | 835.0 | 605.2 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 5.92 | 155.46 | 25.51 | 274.64 | 0.4315 | 815.0 | 665.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 8.73 | 155.53 | 25.58 | 281.10 | 0.4367 | 816.0 | 650.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 9.63 | 155.30 | 25.34 | 283.22 | 0.4353 | 780.0 | 616.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 3.56 | 152.85 | 22.90 | 268.86 | 0.3901 | 474.0 | 465.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 4.92 | 151.44 | 21.49 | 272.38 | 0.3668 | 777.0 | 528.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 9.00 | 150.72 | 20.76 | 283.79 | 0.3621 | 821.0 | 615.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 11.32 | 150.01 | 20.06 | 290.51 | 0.3607 | 735.0 | 582.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
