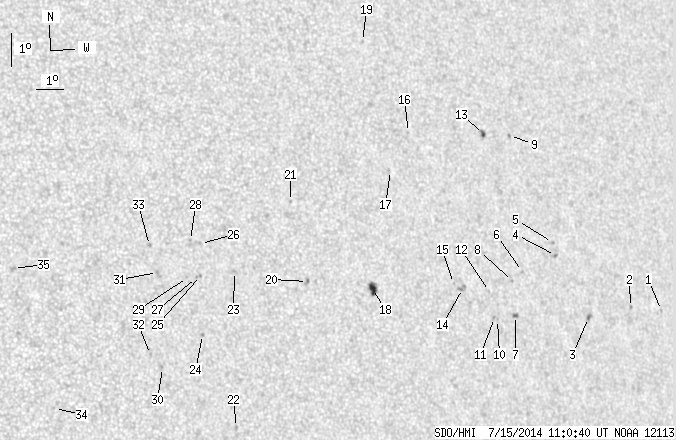

SDO HMI 2014-07-15 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.54 | 57.67 | 5.24 | 34.79 | 8.53 | 163.72 | 34.32 | 278.96 | 0.5641 | -68.7 | -117.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.76 | 6.76 | 174.55 | 45.15 | 275.21 | 0.7092 | -381.0 | -356.9 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 6.92 | 173.23 | 43.83 | 275.47 | 0.6929 | -520.0 | -501.5 | |
| 0.73 | 2.36 | 0.48 | 1.57 | 6.71 | 171.44 | 42.04 | 275.20 | 0.6700 | -700.1 | -561.9 | |
| 0.00 | 1.63 | 0.00 | 1.07 | 8.67 | 170.32 | 40.91 | 278.22 | 0.6564 | -786.0 | -669.1 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 9.07 | 170.25 | 40.85 | 278.84 | 0.6559 | -699.0 | -621.7 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 8.24 | 168.93 | 39.52 | 277.69 | 0.6378 | -621.0 | -522.5 | |
| 1.00 | 2.54 | 0.64 | 1.62 | 6.92 | 168.50 | 39.10 | 275.63 | 0.6313 | -719.7 | -587.2 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 7.96 | 168.49 | 39.09 | 277.28 | 0.6318 | -690.0 | -610.8 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 12.42 | 169.04 | 39.64 | 284.18 | 0.6449 | -762.0 | -534.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 6.83 | 167.78 | 38.38 | 275.52 | 0.6216 | -701.0 | -578.1 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 6.90 | 167.67 | 38.27 | 275.63 | 0.6201 | -768.0 | -677.8 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 7.70 | 167.56 | 38.15 | 276.93 | 0.6190 | -660.0 | -551.7 | |
| 1.36 | 3.45 | 0.87 | 2.20 | 12.50 | 168.01 | 38.61 | 284.54 | 0.6316 | 717.5 | 551.0 | |
| 0.00 | 4.81 | 0.00 | 2.99 | 7.84 | 166.52 | 37.12 | 277.25 | 0.6048 | -931.0 | -685.2 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 8.01 | 166.19 | 36.79 | 277.56 | 0.6004 | -542.0 | -518.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 12.70 | 165.09 | 35.69 | 285.62 | 0.5932 | 669.0 | 456.3 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 11.56 | 164.23 | 34.83 | 283.94 | 0.5787 | 571.0 | 595.6 | |
| 5.45 | 8.45 | 3.25 | 5.03 | 7.99 | 163.13 | 33.73 | 277.88 | 0.5572 | -931.7 | -675.9 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 15.58 | 163.84 | 34.44 | 290.86 | 0.5851 | -617.0 | -459.3 | |
| 0.00 | 2.45 | 0.00 | 1.42 | 8.30 | 160.78 | 31.38 | 278.81 | 0.5234 | -875.0 | -756.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 10.77 | 160.42 | 31.02 | 283.60 | 0.5228 | -751.0 | -607.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 3.95 | 157.98 | 28.58 | 270.27 | 0.4792 | 673.0 | 571.8 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 8.71 | 158.21 | 28.81 | 280.14 | 0.4858 | 730.0 | 568.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 6.83 | 156.95 | 27.55 | 276.43 | 0.4640 | 790.0 | 672.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 8.63 | 157.01 | 27.61 | 280.28 | 0.4676 | 739.0 | 606.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 9.60 | 157.10 | 27.69 | 282.33 | 0.4710 | 549.0 | 506.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 8.57 | 156.87 | 27.47 | 280.20 | 0.4653 | 703.0 | 611.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 9.71 | 156.76 | 27.35 | 282.66 | 0.4661 | 685.0 | 544.8 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 8.58 | 156.56 | 27.16 | 280.31 | 0.4606 | 773.0 | 584.9 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 5.87 | 155.52 | 26.12 | 274.47 | 0.4411 | 802.0 | 650.6 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 8.77 | 155.54 | 26.13 | 281.02 | 0.4453 | 891.0 | 693.2 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 6.28 | 155.13 | 25.73 | 275.44 | 0.4353 | 813.0 | 676.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 9.60 | 155.33 | 25.93 | 282.95 | 0.4441 | 775.0 | 608.2 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 4.74 | 151.84 | 22.44 | 271.88 | 0.3822 | 604.0 | 479.0 | |
| 0.00 | 2.72 | 0.00 | 1.45 | 9.04 | 150.70 | 21.30 | 283.63 | 0.3706 | 880.0 | 642.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
