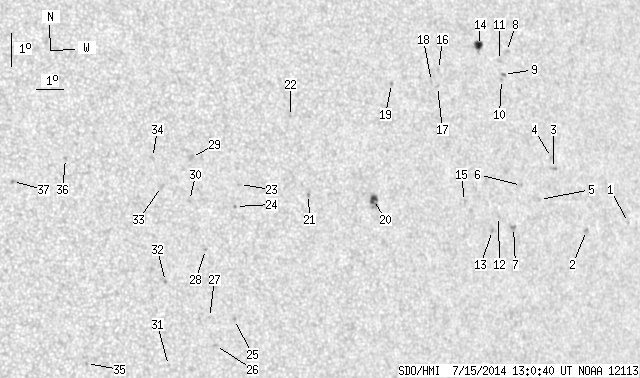

SDO HMI 2014-07-15 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.89 | 70.16 | 5.59 | 42.97 | 9.03 | 163.74 | 35.44 | 279.41 | 0.5804 | 42.6 | -39.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.63 | 6.86 | 173.32 | 45.02 | 275.36 | 0.7077 | -579.0 | -440.9 | |
| 0.00 | 2.27 | 0.00 | 1.54 | 6.71 | 171.50 | 43.20 | 275.18 | 0.6849 | -728.0 | -619.1 | |
| 0.00 | 2.18 | 0.00 | 1.45 | 8.67 | 170.37 | 42.06 | 278.13 | 0.6713 | -922.0 | -703.9 | |
| 0.00 | 1.72 | 0.00 | 1.15 | 9.01 | 170.33 | 42.03 | 278.64 | 0.6711 | -712.0 | -550.2 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 7.76 | 169.67 | 41.37 | 276.80 | 0.6617 | -409.0 | -298.2 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 8.22 | 168.99 | 40.69 | 277.56 | 0.6531 | -667.0 | -470.9 | |
| 0.00 | 2.45 | 0.00 | 1.59 | 6.96 | 168.52 | 40.22 | 275.64 | 0.6463 | -789.0 | -631.0 | |
| 0.00 | 2.54 | 0.00 | 1.67 | 12.34 | 169.02 | 40.72 | 283.83 | 0.6586 | -443.0 | -389.9 | |
| 0.36 | 1.36 | 0.24 | 0.89 | 11.64 | 168.77 | 40.47 | 282.82 | 0.6542 | -776.8 | -670.6 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 11.49 | 168.66 | 40.36 | 282.61 | 0.6526 | -729.0 | -642.1 | |
| 0.00 | 2.00 | 0.00 | 1.30 | 12.08 | 168.69 | 40.39 | 283.50 | 0.6539 | -191.0 | -181.6 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 7.32 | 167.95 | 39.65 | 276.23 | 0.6389 | -680.0 | -655.8 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 6.91 | 167.67 | 39.37 | 275.59 | 0.6350 | -751.0 | -656.1 | |
| 4.72 | 8.08 | 3.05 | 5.22 | 12.58 | 167.92 | 39.62 | 284.43 | 0.6449 | 727.8 | 486.4 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 7.84 | 166.66 | 38.36 | 277.15 | 0.6218 | -674.0 | -628.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 11.92 | 166.20 | 37.90 | 283.78 | 0.6211 | 472.0 | 347.5 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 11.40 | 166.08 | 37.78 | 282.97 | 0.6185 | 596.0 | 518.7 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 11.57 | 165.87 | 37.57 | 283.28 | 0.6159 | 667.0 | 491.3 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 11.58 | 164.31 | 36.01 | 283.66 | 0.5949 | 743.0 | 620.4 | |
| 3.81 | 8.99 | 2.30 | 5.43 | 8.06 | 163.19 | 34.89 | 277.86 | 0.5738 | -907.5 | -698.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 8.32 | 160.80 | 32.50 | 278.65 | 0.5399 | -840.0 | -676.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 10.73 | 160.40 | 32.10 | 283.20 | 0.5384 | -713.0 | -592.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 8.72 | 158.35 | 30.05 | 279.89 | 0.5044 | 788.0 | 615.7 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 8.06 | 158.15 | 29.85 | 278.61 | 0.5003 | -682.0 | -515.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 4.62 | 157.89 | 29.59 | 271.68 | 0.4943 | 652.0 | 558.9 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 3.85 | 157.19 | 28.89 | 270.08 | 0.4839 | 690.0 | 557.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 4.71 | 157.01 | 28.71 | 271.86 | 0.4810 | 751.0 | 580.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 6.79 | 156.99 | 28.69 | 276.19 | 0.4815 | 814.0 | 657.5 | |
| 0.00 | 3.63 | 0.00 | 2.05 | 9.61 | 156.73 | 28.43 | 282.10 | 0.4820 | 702.0 | 411.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 8.30 | 156.54 | 28.24 | 279.43 | 0.4766 | 730.0 | 569.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 3.30 | 155.54 | 27.24 | 268.75 | 0.4589 | 535.0 | 455.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 5.86 | 155.55 | 27.25 | 274.36 | 0.4586 | 842.0 | 689.4 | |
| 0.00 | 2.36 | 0.00 | 1.32 | 8.76 | 155.60 | 27.30 | 280.65 | 0.4632 | 699.0 | 635.3 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 9.66 | 155.37 | 27.07 | 282.65 | 0.4616 | 789.0 | 622.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 3.46 | 152.76 | 24.46 | 268.77 | 0.4151 | 770.0 | 595.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 9.73 | 152.39 | 24.09 | 283.99 | 0.4163 | 842.0 | 637.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 9.08 | 150.56 | 22.26 | 283.24 | 0.3859 | 987.0 | 783.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
