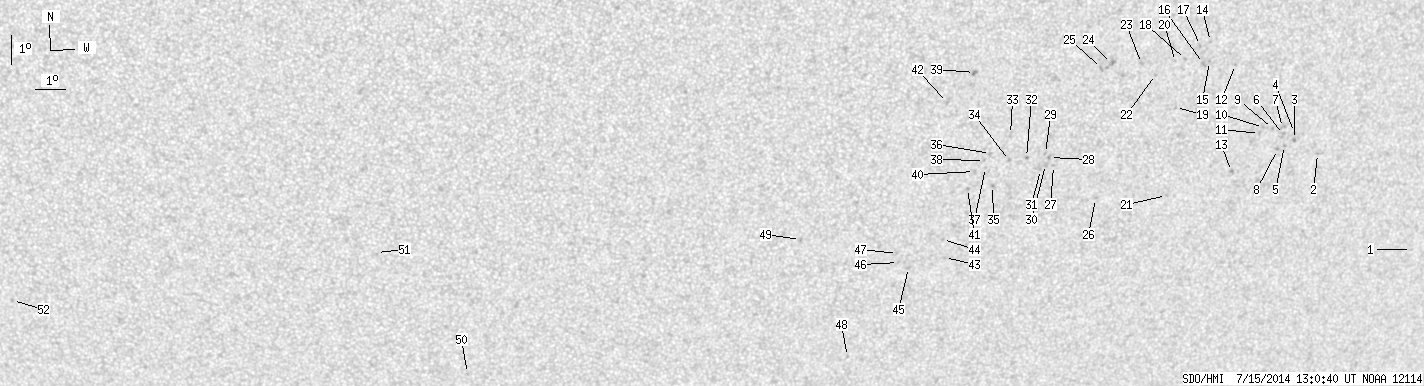

SDO HMI 2014-07-15 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 70.26 | 0.00 | 41.49 | -20.40 | 149.11 | 20.81 | 218.16 | 0.5437 | 215.9 | 227.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.62 | -24.30 | 162.12 | 33.82 | 227.32 | 0.6924 | -559.0 | -531.6 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -20.84 | 157.59 | 29.29 | 227.67 | 0.6207 | 601.0 | 499.0 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -20.33 | 156.63 | 28.33 | 227.41 | 0.6066 | 674.0 | 552.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -20.09 | 156.58 | 28.28 | 227.67 | 0.6041 | 654.0 | 540.9 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -20.52 | 156.30 | 28.00 | 226.84 | 0.6049 | 639.0 | 521.6 | |
| 0.00 | 2.00 | 0.00 | 1.23 | -20.14 | 156.19 | 27.89 | 227.22 | 0.6005 | 814.0 | 673.5 | |
| 0.00 | 2.54 | 0.00 | 1.57 | -19.91 | 156.10 | 27.80 | 227.45 | 0.5976 | 631.0 | 545.2 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -20.64 | 156.06 | 27.76 | 226.45 | 0.6036 | 764.0 | 608.1 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -19.93 | 155.74 | 27.44 | 227.06 | 0.5940 | 659.0 | 584.5 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -19.88 | 155.40 | 27.10 | 226.78 | 0.5901 | 711.0 | 589.8 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -20.08 | 155.29 | 26.99 | 226.41 | 0.5908 | 582.0 | 536.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -17.75 | 154.04 | 25.73 | 228.26 | 0.5564 | 600.0 | 515.5 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -21.32 | 154.51 | 26.21 | 224.00 | 0.5944 | 873.0 | 693.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -16.96 | 153.04 | 24.74 | 228.29 | 0.5382 | 610.0 | 435.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -17.61 | 153.09 | 24.79 | 227.41 | 0.5450 | 612.0 | 469.8 | |
| 0.00 | 2.72 | 0.00 | 1.61 | -17.67 | 152.89 | 24.59 | 227.10 | 0.5434 | 756.0 | 560.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -17.08 | 152.70 | 24.40 | 227.74 | 0.5357 | 754.0 | 601.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -17.52 | 152.24 | 23.94 | 226.57 | 0.5349 | 864.0 | 715.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -19.10 | 152.12 | 23.82 | 224.24 | 0.5491 | 557.0 | 533.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -17.57 | 151.90 | 23.60 | 226.09 | 0.5318 | 827.0 | 737.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -22.06 | 152.29 | 23.99 | 220.66 | 0.5805 | 719.0 | 498.5 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -17.98 | 151.25 | 22.95 | 224.74 | 0.5290 | 618.0 | 524.2 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -17.60 | 150.72 | 22.42 | 224.62 | 0.5196 | 809.0 | 672.5 | |
| 0.00 | 3.99 | 0.00 | 2.30 | -17.57 | 149.68 | 21.38 | 223.33 | 0.5084 | 639.0 | 681.8 | |
| 0.00 | 2.36 | 0.00 | 1.35 | -17.72 | 149.35 | 21.05 | 222.69 | 0.5067 | 646.0 | 622.0 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -22.08 | 149.76 | 21.46 | 217.60 | 0.5577 | 533.0 | 430.0 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -20.91 | 148.11 | 19.81 | 216.84 | 0.5301 | 619.0 | 471.8 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -20.64 | 147.94 | 19.64 | 216.93 | 0.5254 | 717.0 | 533.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -20.50 | 147.78 | 19.48 | 216.89 | 0.5224 | 769.0 | 608.0 | |
| 0.00 | 2.45 | 0.00 | 1.43 | -20.87 | 147.83 | 19.53 | 216.50 | 0.5271 | 660.0 | 544.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.04 | 147.68 | 19.38 | 216.10 | 0.5277 | 675.0 | 530.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -20.62 | 147.14 | 18.84 | 215.85 | 0.5181 | 943.0 | 775.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -19.83 | 146.50 | 18.20 | 215.88 | 0.5032 | 520.0 | 423.4 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.70 | 146.57 | 18.27 | 214.93 | 0.5142 | 855.0 | 692.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -21.53 | 146.09 | 17.79 | 213.26 | 0.5201 | -706.0 | -569.1 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -20.45 | 145.89 | 17.59 | 214.23 | 0.5053 | -561.0 | -379.8 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -20.92 | 145.77 | 17.47 | 213.50 | 0.5100 | -365.0 | -309.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -20.68 | 145.71 | 17.41 | 213.69 | 0.5066 | -449.0 | -372.1 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -17.74 | 145.06 | 16.76 | 216.36 | 0.4651 | -860.0 | -788.8 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -21.04 | 145.41 | 17.11 | 212.82 | 0.5086 | -633.0 | -536.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -21.61 | 145.24 | 16.94 | 211.92 | 0.5143 | -803.0 | -678.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -18.71 | 144.25 | 15.95 | 213.78 | 0.4699 | -717.0 | -676.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -23.96 | 144.74 | 16.44 | 208.74 | 0.5398 | -524.0 | -516.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -23.34 | 144.59 | 16.29 | 209.14 | 0.5309 | -590.0 | -450.9 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -24.28 | 143.53 | 15.23 | 206.66 | 0.5356 | -698.0 | -565.7 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -24.10 | 143.16 | 14.86 | 206.28 | 0.5308 | -708.0 | -573.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -23.79 | 143.09 | 14.79 | 206.46 | 0.5263 | -718.0 | -575.6 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -27.38 | 141.78 | 13.48 | 201.54 | 0.5657 | -670.0 | -552.6 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -23.24 | 139.72 | 11.42 | 201.51 | 0.4983 | -798.0 | -704.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -27.85 | 128.61 | 0.31 | 180.51 | 0.5350 | -469.0 | -425.1 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -23.58 | 125.57 | -2.73 | 174.68 | 0.4723 | -149.0 | -234.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -25.40 | 113.07 | -15.23 | 154.33 | 0.5499 | -701.0 | -566.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
