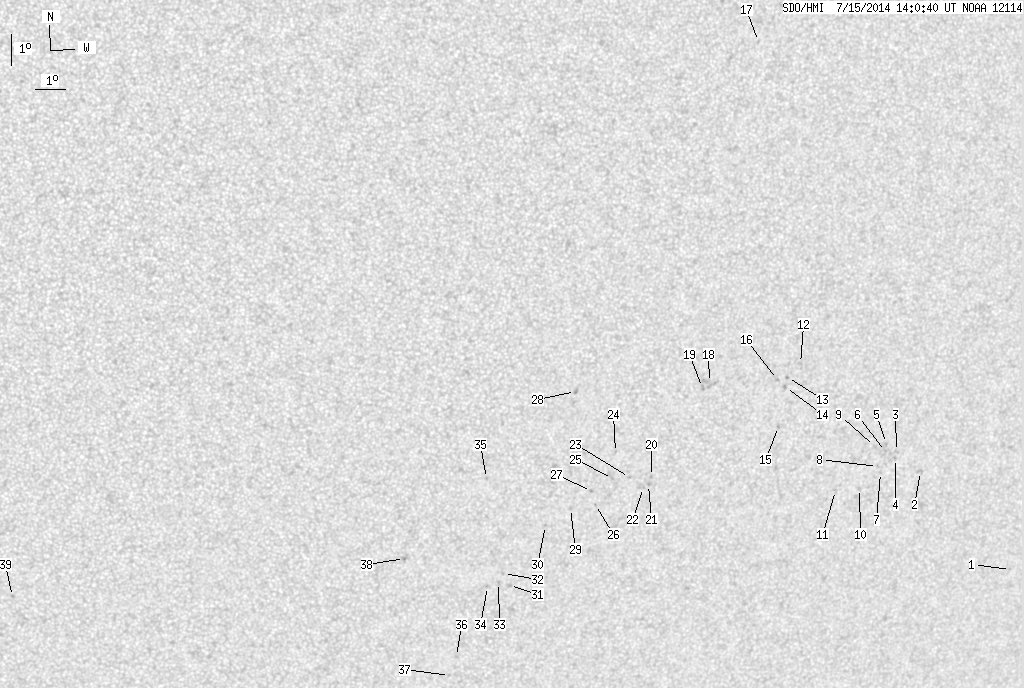

SDO HMI 2014-07-15 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 61.09 | 0.00 | 36.12 | -20.26 | 149.16 | 21.41 | 219.33 | 0.5449 | 147.5 | 211.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.31 | -24.36 | 162.11 | 34.37 | 227.67 | 0.6978 | -649.0 | -537.2 | |
| 0.00 | 2.90 | 0.00 | 1.84 | -20.82 | 157.67 | 29.92 | 228.26 | 0.6271 | 583.0 | 444.2 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -20.11 | 156.62 | 28.88 | 228.21 | 0.6104 | 653.0 | 538.7 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -20.35 | 156.63 | 28.89 | 227.92 | 0.6125 | 600.0 | 494.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -19.83 | 156.20 | 28.45 | 228.18 | 0.6036 | 633.0 | 532.8 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -20.10 | 156.21 | 28.47 | 227.84 | 0.6060 | 739.0 | 703.2 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -20.80 | 156.17 | 28.42 | 226.89 | 0.6117 | 494.0 | 356.5 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -20.59 | 156.02 | 28.27 | 227.01 | 0.6083 | 683.0 | 544.3 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -19.91 | 155.77 | 28.02 | 227.65 | 0.5999 | 691.0 | 526.6 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -21.31 | 155.50 | 27.75 | 225.59 | 0.6095 | 647.0 | 468.0 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -21.34 | 154.62 | 26.87 | 224.66 | 0.6011 | 792.0 | 641.5 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -17.06 | 152.64 | 24.89 | 228.31 | 0.5409 | 300.0 | 327.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -17.50 | 152.24 | 24.50 | 227.23 | 0.5407 | 825.0 | 720.2 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -17.83 | 152.22 | 24.47 | 226.74 | 0.5436 | 742.0 | 656.4 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -19.12 | 152.17 | 24.42 | 224.91 | 0.5554 | 604.0 | 483.3 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -17.56 | 151.90 | 24.15 | 226.76 | 0.5376 | 776.0 | 652.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -6.76 | 150.25 | 22.51 | 243.81 | 0.4254 | 628.0 | 466.7 | |
| 0.00 | 8.90 | 0.00 | 5.13 | -17.58 | 149.54 | 21.79 | 223.85 | 0.5128 | 253.0 | 618.4 | |
| 0.00 | 2.18 | 0.00 | 1.26 | -17.74 | 149.32 | 21.57 | 223.34 | 0.5122 | 658.0 | 604.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -20.65 | 147.94 | 20.19 | 217.67 | 0.5306 | 812.0 | 630.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -20.92 | 147.87 | 20.13 | 217.25 | 0.5330 | 862.0 | 698.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.01 | 147.71 | 19.97 | 216.92 | 0.5327 | 775.0 | 623.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -20.66 | 147.18 | 19.43 | 216.62 | 0.5239 | 902.0 | 687.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -19.81 | 146.59 | 18.84 | 216.84 | 0.5087 | 729.0 | 627.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -20.68 | 146.60 | 18.85 | 215.78 | 0.5190 | 878.0 | 724.9 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -21.54 | 146.12 | 18.37 | 214.09 | 0.5251 | -677.0 | -575.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -21.10 | 145.93 | 18.18 | 214.33 | 0.5182 | -523.0 | -478.4 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -17.75 | 145.01 | 17.26 | 217.15 | 0.4699 | -803.0 | -748.6 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -21.66 | 145.27 | 17.53 | 212.74 | 0.5195 | -796.0 | -620.7 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.22 | 144.48 | 16.74 | 210.96 | 0.5202 | -664.0 | -542.5 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -24.26 | 143.49 | 15.74 | 207.45 | 0.5387 | -719.0 | -530.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -23.83 | 143.23 | 15.48 | 207.46 | 0.5316 | -593.0 | -490.3 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -24.14 | 143.10 | 15.35 | 206.97 | 0.5346 | -788.0 | -596.1 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -24.27 | 142.73 | 14.98 | 206.31 | 0.5339 | -715.0 | -492.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.58 | 142.30 | 14.55 | 209.29 | 0.4826 | -713.0 | -559.7 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -26.72 | 141.95 | 14.20 | 203.09 | 0.5609 | -689.0 | -516.0 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -27.39 | 141.79 | 14.04 | 202.35 | 0.5688 | -597.0 | -462.2 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -23.25 | 139.78 | 12.03 | 202.53 | 0.5019 | -817.0 | -687.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.44 | 126.68 | -1.07 | 177.98 | 0.4839 | -762.0 | -591.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
