SDO HMI 2014-07-15 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.08 | 48.65 | 8.00 | 31.45 | 9.71 | 165.69 | 39.61 | 280.01 | 0.6386 | 55.0 | -71.7 | |
|
previous
or next observation for the same group /

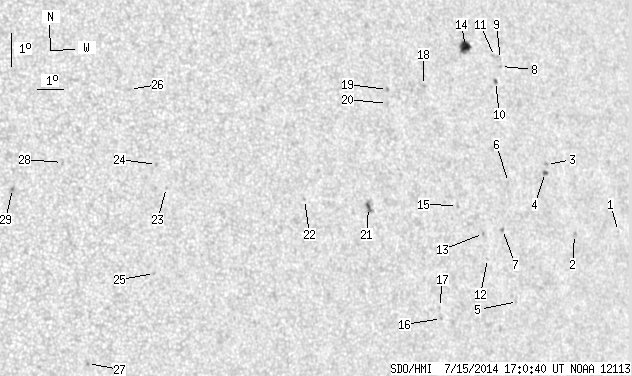

back to the solar disc SDO HMI 2014-07-15 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.20 | 6.70 | 173.53 | 47.44 | 275.10 | 0.7367 | -557.0 | -419.7 | |
| 0.00 | 2.36 | 0.00 | 1.66 | 6.72 | 171.56 | 45.47 | 275.14 | 0.7132 | -520.0 | -439.8 | |
| 0.00 | 1.63 | 0.00 | 1.13 | 8.91 | 170.64 | 44.56 | 278.28 | 0.7027 | -672.0 | -548.9 | |
| 1.27 | 2.18 | 0.88 | 1.51 | 8.67 | 170.56 | 44.48 | 277.95 | 0.7016 | -716.0 | -581.6 | |
| 0.00 | 0.64 | 0.00 | 0.43 | 4.81 | 168.93 | 42.84 | 272.37 | 0.6804 | -366.0 | -427.7 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 8.45 | 168.95 | 42.86 | 277.73 | 0.6813 | -623.0 | -509.3 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 7.03 | 168.52 | 42.43 | 275.66 | 0.6752 | -649.0 | -524.4 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 12.01 | 169.21 | 43.13 | 282.90 | 0.6883 | -776.0 | -635.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 12.22 | 169.26 | 43.17 | 283.20 | 0.6891 | -598.0 | -551.7 | |
| 0.73 | 2.09 | 0.49 | 1.41 | 11.56 | 168.91 | 42.83 | 282.29 | 0.6839 | -779.5 | -676.7 | |
| 0.00 | 2.81 | 0.00 | 1.91 | 12.32 | 169.02 | 42.94 | 283.39 | 0.6864 | -794.0 | -594.7 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 6.18 | 167.80 | 41.72 | 274.40 | 0.6658 | -467.0 | -390.6 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 6.95 | 167.72 | 41.63 | 275.56 | 0.6649 | -816.0 | -691.3 | |
| 8.17 | 10.80 | 5.45 | 7.21 | 12.69 | 167.87 | 41.78 | 284.14 | 0.6726 | 770.3 | 467.3 | |
| 0.00 | 1.72 | 0.00 | 1.12 | 7.86 | 166.76 | 40.67 | 276.99 | 0.6527 | -583.0 | -475.1 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 4.45 | 165.80 | 39.71 | 271.71 | 0.6395 | 727.0 | 600.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 4.79 | 165.74 | 39.66 | 272.24 | 0.6387 | 546.0 | 490.6 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 11.58 | 165.93 | 39.84 | 282.84 | 0.6459 | 656.0 | 523.9 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 11.53 | 164.47 | 38.38 | 283.04 | 0.6267 | 694.0 | 627.4 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 11.10 | 164.40 | 38.31 | 282.37 | 0.6251 | 747.0 | 626.2 | |
| 1.91 | 4.54 | 1.18 | 2.82 | 7.97 | 163.24 | 37.16 | 277.44 | 0.6054 | -929.6 | -707.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 8.32 | 160.84 | 34.75 | 278.31 | 0.5722 | -775.0 | -672.6 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 8.89 | 155.86 | 29.77 | 280.27 | 0.5005 | 662.0 | 587.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 9.61 | 155.57 | 29.48 | 281.77 | 0.4976 | 782.0 | 662.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 6.29 | 155.23 | 29.14 | 275.09 | 0.4880 | 744.0 | 650.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 11.94 | 154.86 | 28.77 | 286.67 | 0.4935 | 806.0 | 640.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 3.63 | 152.78 | 26.70 | 269.40 | 0.4502 | 798.0 | 699.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 9.79 | 152.29 | 26.21 | 283.22 | 0.4489 | 720.0 | 613.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 9.05 | 150.52 | 24.44 | 282.21 | 0.4198 | 873.0 | 737.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
