SDO HMI 2014-07-15 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.17 | 0.00 | 3.50 | -10.04 | 100.70 | -25.38 | 119.69 | 0.4897 | 699.8 | 580.9 | |
|
previous
or next observation for the same group /

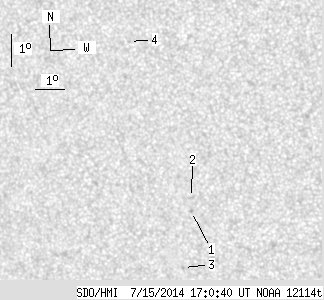

back to the solar disc SDO HMI 2014-07-15 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.67 | -10.93 | 101.18 | -24.90 | 121.84 | 0.4886 | 779.0 | 628.6 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -10.48 | 101.22 | -24.86 | 121.09 | 0.4847 | 687.0 | 567.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -12.72 | 100.73 | -25.36 | 124.45 | 0.5086 | 776.0 | 669.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -5.68 | 99.44 | -26.65 | 110.44 | 0.4782 | 557.0 | 464.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
