SDO HMI 2014-07-15 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.89 | 43.48 | 5.53 | 28.68 | 9.82 | 164.19 | 40.87 | 280.01 | 0.6539 | 122.4 | 89.7 | |
|
previous
or next observation for the same group /

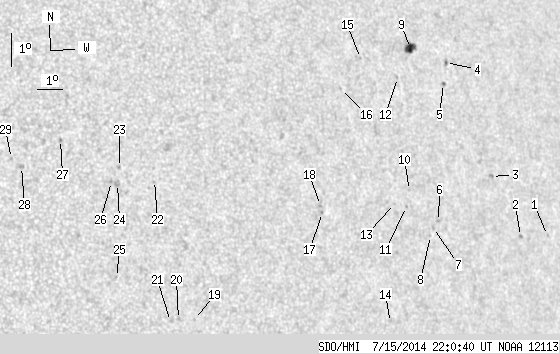

back to the solar disc SDO HMI 2014-07-15 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.48 | 6.62 | 173.03 | 49.71 | 274.96 | 0.7629 | -300.0 | -352.4 | |
| 0.00 | 1.63 | 0.00 | 1.22 | 6.66 | 171.76 | 48.45 | 275.01 | 0.7485 | -601.0 | -512.2 | |
| 0.00 | 1.63 | 0.00 | 1.19 | 8.56 | 170.71 | 47.40 | 277.60 | 0.7366 | -632.0 | -586.7 | |
| 0.54 | 2.18 | 0.39 | 1.56 | 12.15 | 169.33 | 46.02 | 282.65 | 0.7232 | -662.2 | -550.6 | |
| 0.54 | 1.45 | 0.39 | 1.03 | 11.51 | 169.10 | 45.79 | 281.80 | 0.7198 | -657.8 | -592.8 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 7.32 | 168.16 | 44.85 | 275.98 | 0.7057 | -600.0 | -518.2 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 7.15 | 167.93 | 44.61 | 275.74 | 0.7027 | -616.0 | -499.7 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 6.92 | 167.77 | 44.46 | 275.41 | 0.7007 | -729.0 | -648.1 | |
| 6.81 | 11.07 | 4.75 | 7.73 | 12.66 | 167.88 | 44.57 | 283.57 | 0.7067 | 753.5 | 414.2 | |
| 0.00 | 0.73 | 0.00 | 0.50 | 8.33 | 167.05 | 43.74 | 277.47 | 0.6922 | -601.0 | -468.8 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 7.85 | 166.86 | 43.55 | 276.79 | 0.6896 | -548.0 | -473.2 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 11.80 | 167.13 | 43.82 | 282.47 | 0.6964 | 546.0 | 466.9 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 7.97 | 166.36 | 43.05 | 276.98 | 0.6834 | -492.0 | -521.2 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 4.36 | 165.83 | 42.52 | 271.66 | 0.6764 | 258.0 | 227.4 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 12.47 | 165.68 | 42.37 | 283.67 | 0.6795 | 595.0 | 544.2 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 11.59 | 164.68 | 41.36 | 282.55 | 0.6655 | 604.0 | 494.1 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 7.85 | 163.38 | 40.07 | 276.98 | 0.6447 | -688.0 | -662.5 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 8.06 | 163.32 | 40.01 | 277.32 | 0.6441 | -884.0 | -712.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 4.82 | 158.16 | 34.84 | 272.13 | 0.5719 | 486.0 | 432.3 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 4.85 | 157.56 | 34.25 | 272.17 | 0.5633 | 381.0 | 457.0 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 4.80 | 157.26 | 33.95 | 272.08 | 0.5590 | 638.0 | 518.0 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 9.12 | 157.03 | 33.72 | 279.85 | 0.5584 | 490.0 | 551.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 9.57 | 155.79 | 32.48 | 280.92 | 0.5413 | 676.0 | 559.5 | |
| 0.00 | 3.72 | 0.00 | 2.18 | 9.09 | 155.66 | 32.35 | 280.05 | 0.5387 | 665.0 | 697.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 6.23 | 155.38 | 32.07 | 274.72 | 0.5317 | 719.0 | 541.9 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 9.16 | 155.45 | 32.14 | 280.22 | 0.5357 | 863.0 | 719.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 10.51 | 153.75 | 30.44 | 283.22 | 0.5137 | 699.0 | 570.4 | |
| 0.00 | 2.36 | 0.00 | 1.34 | 9.74 | 152.28 | 28.97 | 282.14 | 0.4902 | 716.0 | 646.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 10.00 | 151.95 | 28.64 | 282.77 | 0.4859 | 714.0 | 621.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
