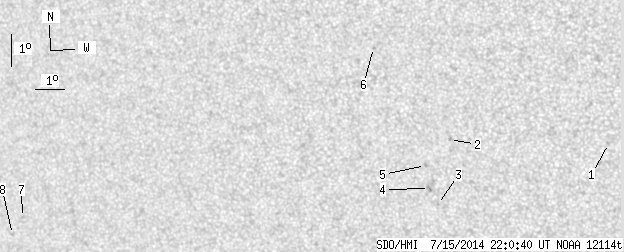

SDO HMI 2014-07-15 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.80 | 0.00 | 6.34 | -11.98 | 96.14 | -27.17 | 122.59 | 0.5234 | 409.0 | 259.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -10.59 | 106.48 | -16.83 | 131.89 | 0.3839 | 742.0 | 566.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -10.59 | 101.25 | -22.06 | 124.43 | 0.4494 | 901.0 | 706.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -12.67 | 100.67 | -22.64 | 127.44 | 0.4750 | 806.0 | 618.2 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -12.17 | 100.44 | -22.87 | 126.31 | 0.4733 | 895.0 | 737.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -11.44 | 100.37 | -22.94 | 124.94 | 0.4679 | 663.0 | 563.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -7.78 | 98.90 | -24.42 | 116.49 | 0.4595 | 711.0 | 603.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -13.68 | 85.42 | -37.89 | 116.27 | 0.6677 | -767.0 | -623.9 | |
| 0.00 | 1.72 | 0.00 | 1.16 | -14.25 | 84.91 | -38.40 | 116.75 | 0.6765 | -679.0 | -548.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
