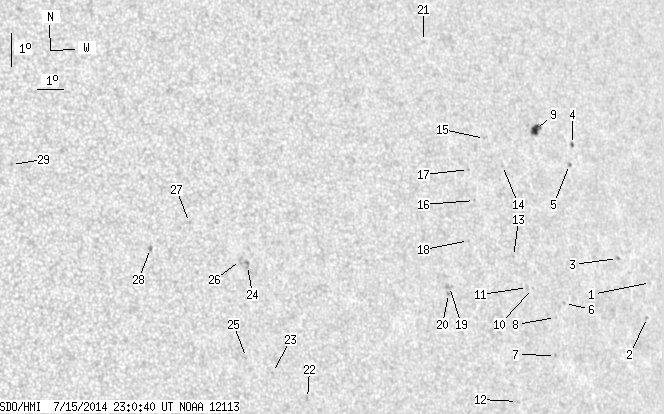

SDO HMI 2014-07-15 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.17 | 44.29 | 5.07 | 29.35 | 9.72 | 164.00 | 41.24 | 279.84 | 0.6591 | 100.9 | 17.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-15 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.41 | 7.72 | 172.16 | 49.40 | 276.40 | 0.7594 | 425.0 | 402.8 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 6.66 | 171.86 | 49.10 | 275.01 | 0.7559 | -559.0 | -454.1 | |
| 0.00 | 1.36 | 0.00 | 1.01 | 8.53 | 170.75 | 47.99 | 277.54 | 0.7435 | -617.0 | -574.7 | |
| 0.64 | 1.91 | 0.46 | 1.38 | 12.12 | 169.40 | 46.64 | 282.52 | 0.7305 | -574.0 | -514.9 | |
| 0.36 | 1.27 | 0.26 | 0.91 | 11.52 | 169.13 | 46.37 | 281.73 | 0.7266 | -665.5 | -603.0 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 7.30 | 168.17 | 45.41 | 275.92 | 0.7125 | -567.0 | -487.8 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 5.74 | 167.60 | 44.84 | 273.72 | 0.7054 | -642.0 | -583.9 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 6.90 | 167.73 | 44.97 | 275.36 | 0.7070 | -607.0 | -602.8 | |
| 6.17 | 8.62 | 4.35 | 6.07 | 12.67 | 167.86 | 45.10 | 283.50 | 0.7130 | 716.9 | 449.9 | |
| 0.00 | 0.73 | 0.00 | 0.50 | 7.83 | 166.85 | 44.09 | 276.72 | 0.6964 | -305.0 | -337.6 | |
| 0.00 | 2.45 | 0.00 | 1.68 | 7.87 | 166.64 | 43.89 | 276.79 | 0.6938 | -425.0 | -302.8 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 4.43 | 165.86 | 43.10 | 271.78 | 0.6839 | 593.0 | 495.7 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 8.85 | 166.18 | 43.43 | 278.24 | 0.6886 | -582.0 | -490.2 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 11.65 | 166.20 | 43.44 | 282.29 | 0.6915 | 605.0 | 480.8 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 12.51 | 165.60 | 42.85 | 283.64 | 0.6854 | 560.0 | 459.3 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 10.64 | 164.83 | 42.07 | 281.01 | 0.6731 | 283.0 | 238.2 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 11.60 | 164.75 | 41.99 | 282.45 | 0.6734 | 584.0 | 444.5 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 9.43 | 164.38 | 41.62 | 279.26 | 0.6662 | -602.0 | -562.8 | |
| 0.00 | 2.99 | 0.00 | 1.95 | 8.07 | 163.41 | 40.66 | 277.28 | 0.6526 | -767.0 | -646.8 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 7.86 | 163.35 | 40.59 | 276.96 | 0.6516 | -810.0 | -668.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 15.62 | 163.73 | 40.97 | 288.62 | 0.6686 | -414.0 | -380.3 | |
| 0.00 | 1.81 | 0.00 | 1.09 | 4.92 | 157.60 | 34.85 | 272.30 | 0.5719 | 720.0 | 545.8 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 5.77 | 156.36 | 33.60 | 273.81 | 0.5540 | 539.0 | 384.8 | |
| 0.00 | 2.09 | 0.00 | 1.23 | 9.07 | 155.73 | 32.97 | 279.88 | 0.5476 | 718.0 | 686.4 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 6.27 | 155.44 | 32.69 | 274.76 | 0.5407 | 749.0 | 630.4 | |
| 0.00 | 3.18 | 0.00 | 1.87 | 9.23 | 155.49 | 32.73 | 280.23 | 0.5444 | 761.0 | 626.7 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 10.47 | 153.76 | 31.01 | 282.96 | 0.5218 | 723.0 | 615.9 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 9.73 | 152.29 | 29.53 | 281.94 | 0.4985 | 787.0 | 654.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 12.48 | 147.71 | 24.95 | 289.70 | 0.4392 | 744.0 | 577.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
