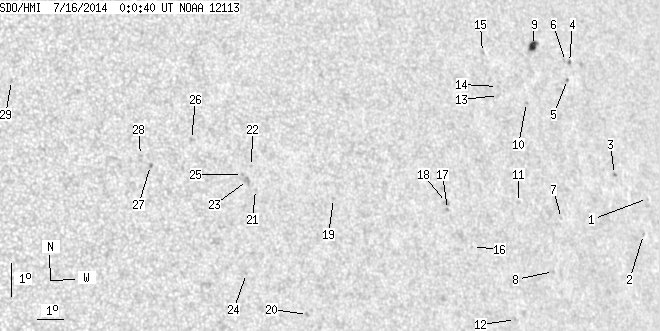

SDO HMI 2014-07-16 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.08 | 46.59 | 4.34 | 30.88 | 9.84 | 163.36 | 41.15 | 280.05 | 0.6573 | 171.5 | 88.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-16 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.56 | 7.71 | 172.19 | 49.98 | 276.38 | 0.7659 | 391.0 | 367.5 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 6.63 | 171.83 | 49.62 | 274.96 | 0.7618 | -490.0 | -442.1 | |
| 0.00 | 1.45 | 0.00 | 1.08 | 8.53 | 170.76 | 48.55 | 277.51 | 0.7500 | -520.0 | -473.2 | |
| 0.54 | 1.63 | 0.40 | 1.19 | 12.06 | 169.39 | 47.18 | 282.37 | 0.7367 | -615.0 | -490.6 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 11.55 | 169.18 | 46.98 | 281.70 | 0.7337 | -621.0 | -623.4 | |
| 0.00 | 2.45 | 0.00 | 1.78 | 12.10 | 169.22 | 47.01 | 282.45 | 0.7347 | -590.0 | -472.8 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 7.33 | 168.16 | 45.96 | 275.95 | 0.7191 | -519.0 | -395.2 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 5.74 | 167.62 | 45.41 | 273.72 | 0.7124 | -725.0 | -602.5 | |
| 5.54 | 8.08 | 3.94 | 5.74 | 12.68 | 167.85 | 45.65 | 283.41 | 0.7195 | 705.2 | 449.8 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 10.95 | 167.21 | 45.01 | 281.09 | 0.7098 | -609.0 | -454.3 | |
| 0.00 | 1.54 | 0.00 | 1.06 | 7.92 | 166.36 | 44.16 | 276.84 | 0.6972 | -452.0 | -363.6 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 4.37 | 165.86 | 43.65 | 271.71 | 0.6909 | 584.0 | 371.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 11.23 | 166.05 | 43.84 | 281.63 | 0.6959 | 566.0 | 514.7 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 11.50 | 166.06 | 43.85 | 282.02 | 0.6964 | 546.0 | 499.5 | |
| 0.00 | 1.91 | 0.00 | 1.31 | 12.58 | 165.63 | 43.42 | 283.63 | 0.6926 | 632.0 | 483.5 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 6.69 | 164.27 | 42.06 | 275.10 | 0.6703 | -560.0 | -495.6 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 7.86 | 163.37 | 41.17 | 276.92 | 0.6591 | -791.0 | -707.5 | |
| 0.00 | 3.09 | 0.00 | 2.03 | 8.08 | 163.36 | 41.15 | 277.25 | 0.6591 | -921.0 | -643.6 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 8.42 | 158.91 | 36.71 | 278.18 | 0.5996 | 660.0 | 541.4 | |
| 0.00 | 1.91 | 0.00 | 1.16 | 4.93 | 157.62 | 35.41 | 272.31 | 0.5800 | 637.0 | 547.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 8.82 | 156.01 | 33.80 | 279.28 | 0.5591 | 572.0 | 505.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 9.53 | 155.94 | 33.73 | 280.56 | 0.5592 | 643.0 | 527.3 | |
| 0.00 | 4.63 | 0.00 | 2.75 | 9.11 | 155.74 | 33.53 | 279.84 | 0.5557 | 746.0 | 694.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 6.28 | 155.45 | 33.24 | 274.74 | 0.5488 | 707.0 | 579.3 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 9.30 | 155.58 | 33.37 | 280.22 | 0.5537 | 786.0 | 662.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 10.45 | 153.83 | 31.63 | 282.73 | 0.5307 | 740.0 | 563.0 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 9.71 | 152.27 | 30.07 | 281.75 | 0.5064 | 758.0 | 660.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 10.03 | 151.95 | 29.74 | 282.47 | 0.5023 | 758.0 | 529.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 12.49 | 147.68 | 25.47 | 289.41 | 0.4470 | 700.0 | 508.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
