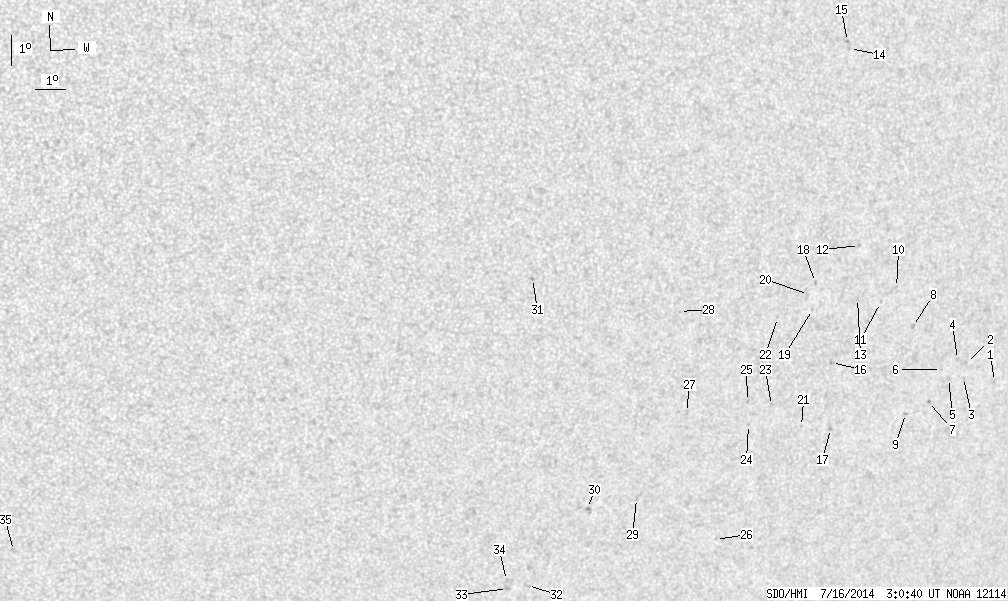

SDO HMI 2014-07-16 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 48.23 | 0.22 | 30.28 | -20.99 | 147.87 | 27.31 | 224.87 | 0.6126 | 287.5 | 157.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-16 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.81 | -20.72 | 157.46 | 36.91 | 233.84 | 0.6979 | 557.0 | 486.4 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -20.02 | 156.14 | 35.58 | 233.79 | 0.6799 | 563.0 | 428.4 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -20.52 | 156.15 | 35.60 | 233.17 | 0.6833 | 457.0 | 416.0 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -19.90 | 155.75 | 35.19 | 233.66 | 0.6751 | 446.0 | 367.1 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -20.53 | 155.55 | 35.00 | 232.73 | 0.6773 | 668.0 | 570.8 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -20.21 | 155.19 | 34.64 | 232.86 | 0.6714 | 549.0 | 456.9 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -21.27 | 154.95 | 34.40 | 231.35 | 0.6764 | 552.0 | 525.1 | |
| 0.00 | 2.27 | 0.00 | 1.47 | -18.71 | 153.71 | 33.15 | 233.66 | 0.6453 | 726.0 | 571.5 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -21.64 | 154.14 | 33.59 | 230.27 | 0.6709 | 588.0 | 498.4 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -17.39 | 152.82 | 32.26 | 234.73 | 0.6262 | 580.0 | 478.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -17.86 | 152.31 | 31.75 | 233.68 | 0.6239 | 588.0 | 499.8 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -15.95 | 151.17 | 30.62 | 235.40 | 0.5971 | 662.0 | 534.1 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -17.69 | 151.41 | 30.86 | 233.16 | 0.6127 | 581.0 | 673.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -9.62 | 149.98 | 29.43 | 244.32 | 0.5396 | 779.0 | 639.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -9.40 | 149.89 | 29.34 | 244.63 | 0.5370 | 891.0 | 761.5 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -19.78 | 150.86 | 30.30 | 229.88 | 0.6231 | 771.0 | 601.5 | |
| 0.00 | 1.91 | 0.00 | 1.23 | -22.02 | 151.32 | 30.77 | 227.45 | 0.6460 | 754.0 | 648.4 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -17.10 | 149.75 | 29.20 | 232.52 | 0.5897 | 688.0 | 568.3 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -17.98 | 149.80 | 29.24 | 231.33 | 0.5973 | 584.0 | 412.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -17.48 | 149.56 | 29.01 | 231.81 | 0.5907 | 657.0 | 542.1 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -21.90 | 150.19 | 29.64 | 226.58 | 0.6339 | 656.0 | 536.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -18.20 | 148.56 | 28.00 | 229.86 | 0.5856 | 672.0 | 508.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -21.14 | 148.90 | 28.34 | 226.32 | 0.6145 | 547.0 | 388.5 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -21.75 | 148.17 | 27.62 | 224.84 | 0.6129 | 404.0 | 325.6 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -20.97 | 147.98 | 27.42 | 225.62 | 0.6038 | 708.0 | 566.5 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -25.71 | 147.83 | 27.28 | 219.88 | 0.6463 | 321.0 | 285.9 | |
| 0.00 | 2.18 | 0.00 | 1.33 | -21.26 | 145.80 | 25.25 | 222.98 | 0.5852 | -422.0 | -390.8 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -17.87 | 145.00 | 24.44 | 226.57 | 0.5443 | -663.0 | -573.9 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -24.15 | 144.54 | 23.98 | 218.14 | 0.6027 | -420.0 | -393.6 | |
| 0.36 | 3.00 | 0.22 | 1.84 | -24.44 | 142.81 | 22.26 | 215.83 | 0.5912 | -807.2 | -559.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -16.62 | 139.78 | 19.23 | 221.63 | 0.4769 | -681.0 | -563.9 | |
| 0.00 | 2.45 | 0.00 | 1.53 | -27.10 | 141.13 | 20.57 | 211.10 | 0.6078 | -519.0 | -468.1 | |
| 0.00 | 3.00 | 0.00 | 1.86 | -27.19 | 140.42 | 19.86 | 210.16 | 0.6037 | -643.0 | -566.5 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -26.90 | 140.33 | 19.77 | 210.32 | 0.5998 | -752.0 | -633.8 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -25.54 | 123.05 | 2.50 | 184.50 | 0.5030 | -739.0 | -566.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
