SDO HMI 2014-07-16 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.17 | 0.00 | 6.26 | -10.13 | 96.85 | -23.16 | 123.44 | 0.4598 | 536.8 | 397.3 | |
|
previous
or next observation for the same group /

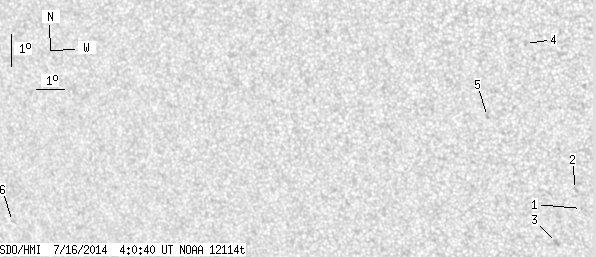

back to the solar disc SDO HMI 2014-07-16 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.44 | -10.91 | 101.32 | -18.68 | 129.63 | 0.4102 | 708.0 | 563.3 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -10.31 | 101.16 | -18.84 | 128.24 | 0.4063 | 720.0 | 634.8 | |
| 0.00 | 3.54 | 0.00 | 1.94 | -12.01 | 100.42 | -19.59 | 130.35 | 0.4321 | 880.0 | 565.6 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -5.79 | 99.76 | -20.24 | 116.65 | 0.3868 | 778.0 | 571.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -8.10 | 98.40 | -21.60 | 120.13 | 0.4232 | 785.0 | 649.3 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -12.08 | 80.83 | -39.18 | 113.40 | 0.6753 | -650.0 | -520.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
