SDO HMI 2014-07-16 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 57.14 | 0.00 | 36.90 | -21.00 | 147.01 | 29.19 | 226.05 | 0.6405 | 332.1 | 295.3 | |
|
previous
or next observation for the same group /

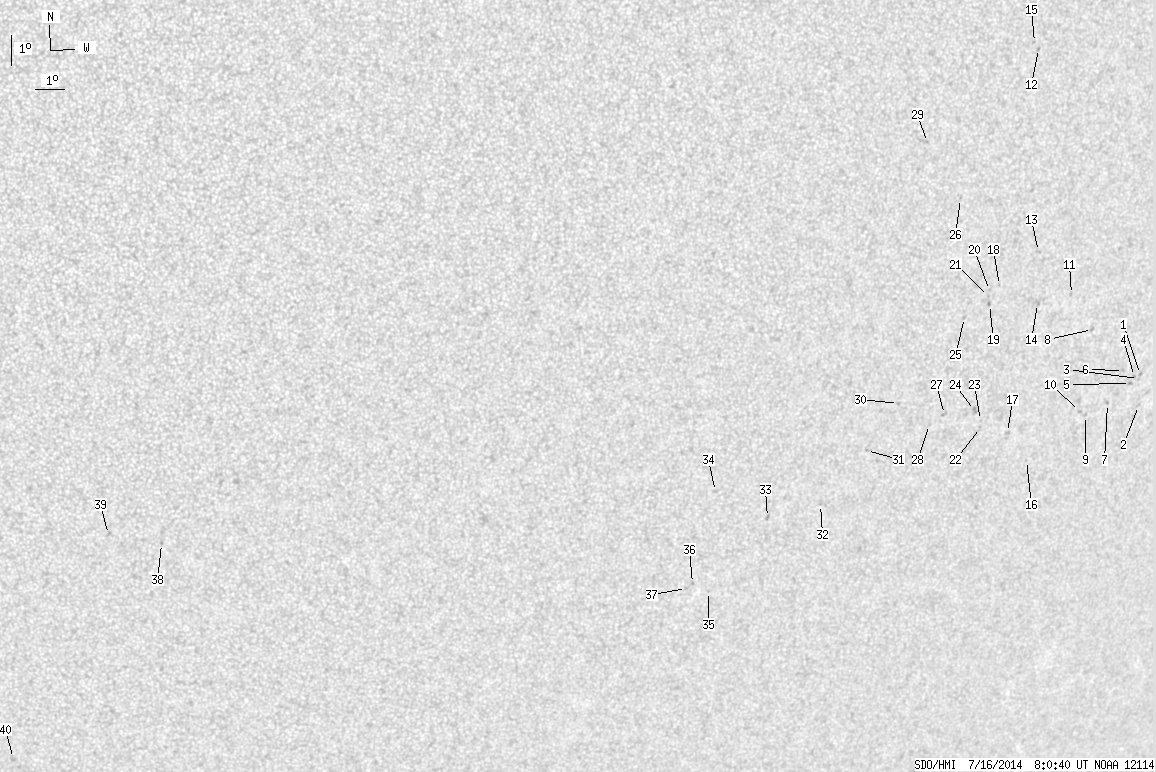

back to the solar disc SDO HMI 2014-07-16 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.21 | -20.34 | 156.18 | 38.37 | 235.26 | 0.7105 | 621.0 | 483.9 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -21.40 | 156.42 | 38.60 | 234.13 | 0.7192 | 577.0 | 463.3 | |
| 0.00 | 1.63 | 0.00 | 1.15 | -20.48 | 156.14 | 38.32 | 235.07 | 0.7109 | 382.0 | 427.4 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -20.40 | 155.95 | 38.14 | 235.04 | 0.7085 | 736.0 | 638.8 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -20.63 | 155.85 | 38.04 | 234.70 | 0.7089 | 676.0 | 614.9 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -20.17 | 155.43 | 37.62 | 234.98 | 0.7018 | 739.0 | 594.1 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -21.26 | 155.09 | 37.27 | 233.41 | 0.7052 | 619.0 | 552.8 | |
| 0.00 | 1.73 | 0.00 | 1.16 | -18.73 | 153.80 | 35.98 | 235.70 | 0.6758 | 670.0 | 579.7 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -21.63 | 154.29 | 36.48 | 232.42 | 0.6997 | 518.0 | 439.5 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -21.48 | 154.01 | 36.19 | 232.40 | 0.6958 | 666.0 | 540.6 | |
| 0.00 | 1.73 | 0.00 | 1.13 | -17.53 | 152.69 | 34.87 | 236.50 | 0.6561 | 727.0 | 566.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -9.54 | 150.16 | 32.35 | 246.46 | 0.5777 | 611.0 | 553.6 | |
| 0.00 | 1.91 | 0.00 | 1.21 | -16.05 | 151.11 | 33.30 | 237.36 | 0.6288 | 584.0 | 459.4 | |
| 0.00 | 2.27 | 0.00 | 1.47 | -17.76 | 151.42 | 33.60 | 235.25 | 0.6437 | 633.0 | 648.9 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -9.35 | 150.00 | 32.18 | 246.67 | 0.5744 | 849.0 | 712.7 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -23.06 | 152.32 | 34.50 | 229.24 | 0.6904 | 546.0 | 394.9 | |
| 0.00 | 2.18 | 0.00 | 1.46 | -22.06 | 151.28 | 33.47 | 229.64 | 0.6730 | 625.0 | 550.6 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -17.10 | 149.84 | 32.02 | 234.92 | 0.6216 | 657.0 | 563.9 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -17.71 | 149.58 | 31.76 | 233.87 | 0.6231 | 691.0 | 639.9 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -17.25 | 149.49 | 31.67 | 234.43 | 0.6187 | 679.0 | 522.3 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -17.45 | 149.49 | 31.67 | 234.16 | 0.6202 | 804.0 | 676.9 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -21.84 | 150.16 | 32.35 | 229.01 | 0.6603 | 576.0 | 430.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -21.60 | 150.10 | 32.29 | 229.26 | 0.6578 | 378.0 | 483.0 | |
| 0.00 | 3.09 | 0.00 | 2.01 | -21.24 | 149.78 | 31.97 | 229.43 | 0.6519 | 782.0 | 654.6 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -18.10 | 148.72 | 30.90 | 232.62 | 0.6165 | 680.0 | 479.6 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -14.20 | 147.91 | 30.09 | 237.50 | 0.5784 | 670.0 | 545.6 | |
| 0.00 | 2.54 | 0.00 | 1.64 | -21.33 | 148.65 | 30.84 | 228.35 | 0.6412 | 760.0 | 599.4 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -21.65 | 148.15 | 30.34 | 227.52 | 0.6388 | 272.0 | 308.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -12.36 | 146.47 | 28.66 | 239.16 | 0.5477 | 706.0 | 618.1 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -20.88 | 146.82 | 29.00 | 227.25 | 0.6191 | 635.0 | 533.1 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -22.44 | 145.96 | 28.14 | 224.49 | 0.6242 | -693.0 | -622.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -24.24 | 144.64 | 26.82 | 221.05 | 0.6287 | -546.0 | -403.3 | |
| 0.00 | 2.00 | 0.00 | 1.25 | -24.62 | 142.75 | 24.93 | 218.64 | 0.6158 | -731.0 | -590.9 | |
| 0.00 | 2.09 | 0.00 | 1.28 | -23.65 | 140.65 | 22.83 | 217.38 | 0.5878 | -191.0 | -224.5 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -27.18 | 141.11 | 23.29 | 214.15 | 0.6289 | -611.0 | -528.9 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -26.87 | 140.44 | 22.63 | 213.71 | 0.6206 | -717.0 | -604.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -27.04 | 140.26 | 22.44 | 213.33 | 0.6210 | -681.0 | -585.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -25.07 | 121.65 | 3.84 | 187.02 | 0.4982 | -773.0 | -688.8 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -24.75 | 119.86 | 2.05 | 183.80 | 0.4907 | -706.0 | -620.4 | |
| 0.00 | 3.00 | 0.00 | 1.87 | -32.93 | 116.57 | -1.25 | 178.28 | 0.6095 | -137.0 | -260.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
