SDO HMI 2014-07-16 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.25 | 0.00 | 6.94 | -12.32 | 96.11 | -21.70 | 129.41 | 0.4671 | 188.8 | 155.8 | |
|
previous
or next observation for the same group /

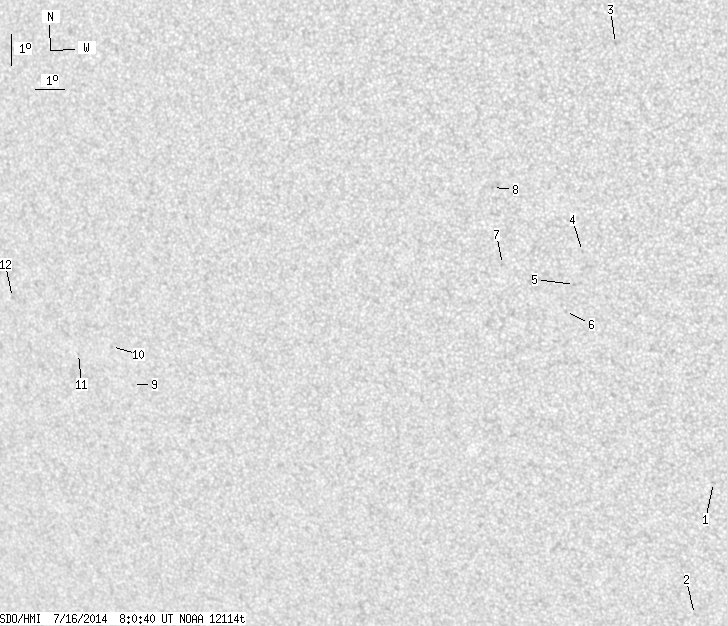

back to the solar disc SDO HMI 2014-07-16 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.90 | -17.37 | 104.97 | -12.84 | 150.16 | 0.4281 | 825.0 | 537.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -21.80 | 103.96 | -13.85 | 153.19 | 0.4950 | -602.0 | -471.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -3.54 | 102.48 | -15.33 | 117.29 | 0.2983 | 828.0 | 580.7 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -10.03 | 101.20 | -16.62 | 131.23 | 0.3760 | 834.0 | 648.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -11.08 | 100.88 | -16.94 | 132.76 | 0.3910 | 680.0 | 561.9 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -11.94 | 100.53 | -17.29 | 133.79 | 0.4044 | 739.0 | 431.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -10.50 | 98.56 | -19.25 | 128.04 | 0.4134 | 632.0 | 444.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -8.09 | 98.38 | -19.44 | 122.85 | 0.3938 | 740.0 | 636.3 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -14.78 | 85.19 | -32.63 | 121.34 | 0.6126 | -561.0 | -473.7 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -13.59 | 84.60 | -33.22 | 119.17 | 0.6121 | -619.0 | -541.6 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -13.87 | 83.30 | -34.52 | 118.68 | 0.6293 | -557.0 | -565.7 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -12.19 | 81.04 | -36.78 | 114.85 | 0.6472 | -673.0 | -512.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
