SDO HMI 2014-07-16 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 46.04 | 0.00 | 30.26 | -20.65 | 149.72 | 32.45 | 230.25 | 0.6573 | 285.9 | 310.3 | |
|
previous
or next observation for the same group /

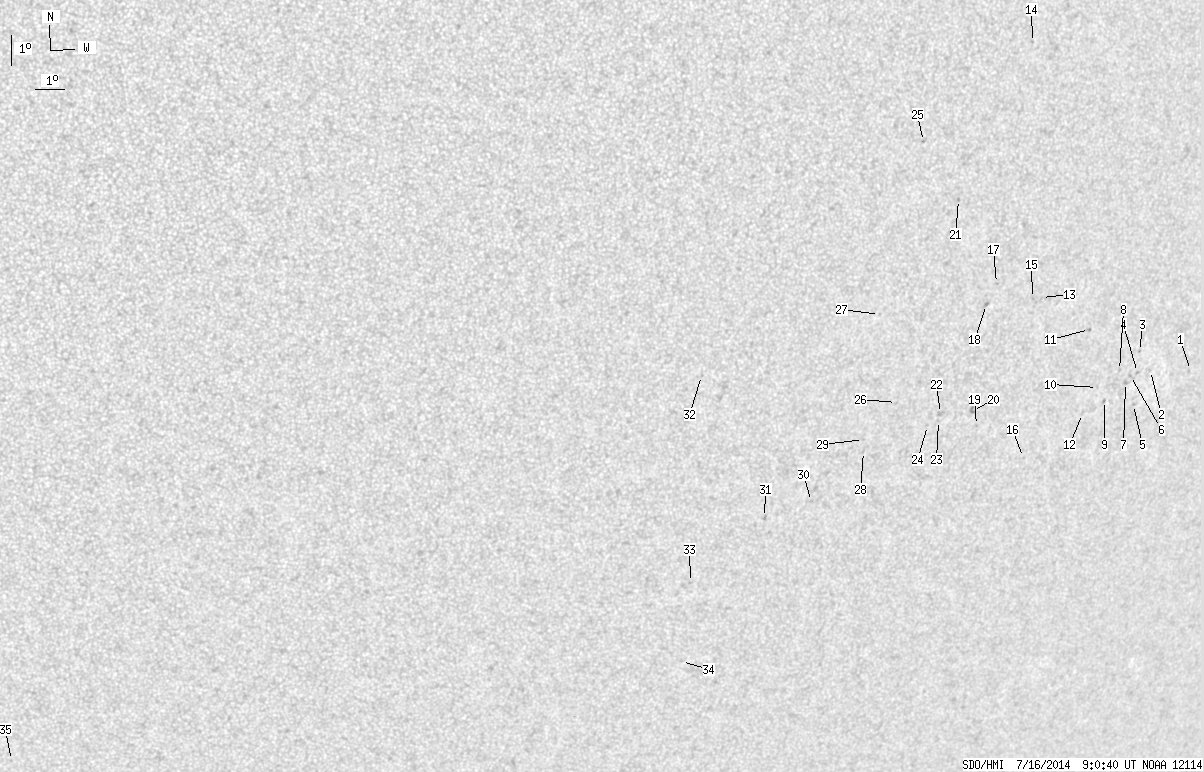

back to the solar disc SDO HMI 2014-07-16 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.40 | -20.36 | 158.48 | 41.22 | 236.98 | 0.7391 | 371.0 | 270.0 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -20.27 | 156.74 | 39.48 | 236.05 | 0.7212 | 167.0 | 222.5 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -19.60 | 156.08 | 38.82 | 236.47 | 0.7107 | 606.0 | 541.6 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -20.31 | 156.21 | 38.94 | 235.67 | 0.7161 | 594.0 | 515.7 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -21.39 | 156.37 | 39.11 | 234.46 | 0.7241 | 589.0 | 519.1 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -20.39 | 155.94 | 38.67 | 235.40 | 0.7139 | 771.0 | 664.3 | |
| 0.00 | 2.36 | 0.00 | 1.67 | -20.62 | 155.80 | 38.53 | 235.03 | 0.7138 | 661.0 | 570.0 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -20.20 | 155.43 | 38.16 | 235.30 | 0.7075 | 583.0 | 530.1 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -21.19 | 155.10 | 37.83 | 233.87 | 0.7103 | 614.0 | 531.4 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -20.73 | 154.67 | 37.40 | 234.15 | 0.7032 | 623.0 | 501.1 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -18.76 | 153.81 | 36.55 | 236.05 | 0.6820 | 621.0 | 575.1 | |
| 0.00 | 1.54 | 0.00 | 1.07 | -21.59 | 154.31 | 37.04 | 232.86 | 0.7050 | 465.0 | 391.8 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -17.60 | 151.65 | 34.38 | 236.05 | 0.6512 | 425.0 | 441.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -9.37 | 150.00 | 32.73 | 246.98 | 0.5818 | 829.0 | 716.4 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -17.62 | 151.30 | 34.03 | 235.77 | 0.6475 | 447.0 | 486.7 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -22.98 | 152.31 | 35.05 | 229.74 | 0.6950 | 414.0 | 361.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -17.06 | 149.81 | 32.54 | 235.39 | 0.6271 | 670.0 | 567.6 | |
| 0.00 | 2.36 | 0.00 | 1.50 | -17.73 | 149.56 | 32.30 | 234.27 | 0.6292 | 709.0 | 572.2 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -21.79 | 150.11 | 32.84 | 229.47 | 0.6648 | 391.0 | 418.2 | |
| 0.00 | 3.36 | 0.00 | 2.20 | -21.27 | 149.82 | 32.55 | 229.88 | 0.6580 | 686.0 | 624.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -14.26 | 147.91 | 30.64 | 237.88 | 0.5855 | 830.0 | 684.3 | |
| 0.00 | 3.63 | 0.00 | 2.35 | -21.32 | 148.60 | 31.33 | 228.80 | 0.6461 | 867.0 | 624.9 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -21.55 | 148.58 | 31.31 | 228.49 | 0.6477 | 394.0 | 317.1 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -21.70 | 148.19 | 30.92 | 227.96 | 0.6451 | 611.0 | 436.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -12.34 | 146.39 | 29.12 | 239.57 | 0.5534 | 793.0 | 644.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -20.87 | 146.83 | 29.56 | 227.78 | 0.6246 | 380.0 | 417.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -17.90 | 145.62 | 28.35 | 230.59 | 0.5870 | -539.0 | -433.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -22.49 | 145.94 | 28.68 | 224.94 | 0.6299 | -689.0 | -544.4 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -22.08 | 145.85 | 28.58 | 225.36 | 0.6254 | -456.0 | -420.6 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -24.15 | 144.37 | 27.10 | 221.44 | 0.6303 | -490.0 | -365.5 | |
| 0.00 | 2.18 | 0.00 | 1.37 | -24.64 | 142.72 | 25.45 | 219.18 | 0.6205 | -571.0 | -549.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -19.70 | 139.56 | 22.29 | 221.50 | 0.5410 | -561.0 | -502.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -26.85 | 140.45 | 23.18 | 214.35 | 0.6246 | -628.0 | -566.4 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -29.72 | 140.77 | 23.51 | 211.93 | 0.6573 | -608.0 | -520.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -33.01 | 116.56 | -0.70 | 179.03 | 0.6104 | -564.0 | -490.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
