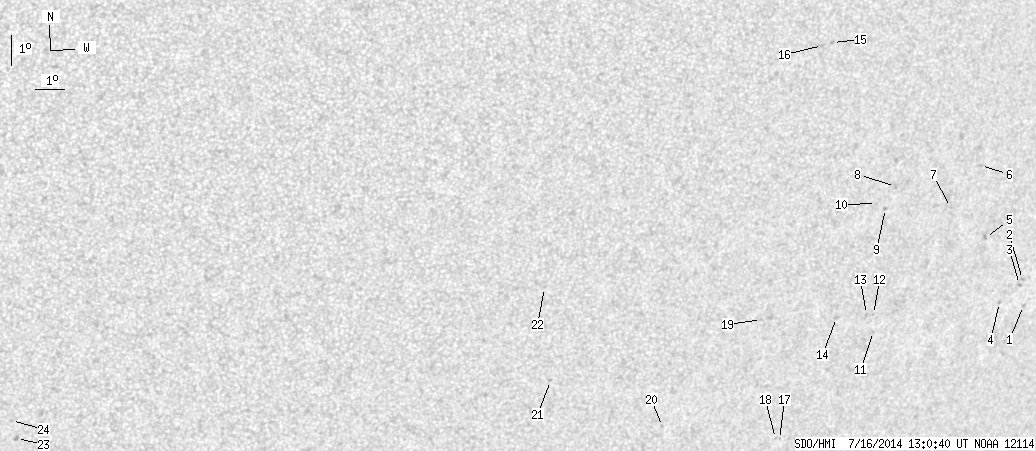

SDO HMI 2014-07-16 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.77 | 0.00 | 19.66 | -19.91 | 147.55 | 32.49 | 230.03 | 0.6566 | 311.7 | 304.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-16 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.14 | -21.29 | 156.33 | 41.26 | 235.88 | 0.7446 | 540.0 | 453.8 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -20.41 | 155.99 | 40.92 | 236.75 | 0.7364 | 741.0 | 634.1 | |
| 0.00 | 1.72 | 0.00 | 1.26 | -20.57 | 155.92 | 40.85 | 236.51 | 0.7366 | 689.0 | 617.6 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -21.13 | 155.24 | 40.17 | 235.42 | 0.7331 | 608.0 | 499.2 | |
| 0.00 | 1.72 | 0.00 | 1.21 | -18.90 | 153.98 | 38.91 | 237.39 | 0.7077 | 712.0 | 592.2 | |
| 0.00 | 1.82 | 0.00 | 1.23 | -16.50 | 153.16 | 38.09 | 239.98 | 0.6854 | 702.0 | 504.4 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -17.83 | 152.27 | 37.20 | 237.68 | 0.6833 | 486.0 | 410.4 | |
| 0.00 | 2.00 | 0.00 | 1.30 | -17.03 | 149.90 | 34.84 | 237.14 | 0.6525 | 563.0 | 420.9 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -17.74 | 149.67 | 34.60 | 236.02 | 0.6545 | 729.0 | 617.8 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -17.55 | 149.28 | 34.21 | 235.98 | 0.6490 | 610.0 | 580.7 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -21.86 | 150.23 | 35.16 | 231.18 | 0.6883 | 529.0 | 482.0 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -21.28 | 150.07 | 35.00 | 231.78 | 0.6826 | 606.0 | 558.2 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -21.26 | 149.78 | 34.72 | 231.58 | 0.6797 | 721.0 | 616.6 | |
| 0.00 | 2.09 | 0.00 | 1.39 | -21.31 | 148.61 | 33.54 | 230.62 | 0.6682 | 705.0 | 593.4 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -12.25 | 146.71 | 31.64 | 241.70 | 0.5844 | 598.0 | 430.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -12.33 | 146.35 | 31.28 | 241.31 | 0.5805 | 642.0 | 493.7 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -25.44 | 147.51 | 32.44 | 224.82 | 0.6895 | 417.0 | 420.3 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -25.40 | 147.33 | 32.27 | 224.72 | 0.6876 | 533.0 | 407.9 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -21.25 | 145.69 | 30.62 | 228.27 | 0.6384 | -395.0 | -290.3 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -24.79 | 142.77 | 27.70 | 221.30 | 0.6417 | -671.0 | -499.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -23.03 | 138.26 | 23.19 | 218.49 | 0.5844 | -626.0 | -527.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -19.86 | 137.52 | 22.45 | 221.49 | 0.5443 | -499.0 | -369.8 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -24.65 | 120.00 | 4.94 | 189.14 | 0.4943 | -860.0 | -737.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -24.02 | 119.81 | 4.75 | 189.01 | 0.4844 | -599.0 | -476.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
