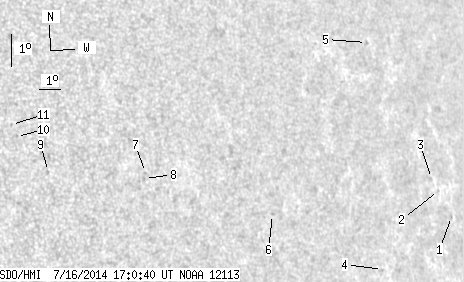

SDO HMI 2014-07-16 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.35 | 0.00 | 9.55 | 9.02 | 162.71 | 49.86 | 278.35 | 0.7583 | 129.7 | 85.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-16 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.46 | 7.05 | 171.45 | 58.60 | 275.54 | 0.8531 | -274.0 | -235.6 | |
| 0.00 | 0.91 | 0.00 | 0.84 | 7.89 | 170.87 | 58.01 | 276.52 | 0.8477 | -478.0 | -411.8 | |
| 0.00 | 0.82 | 0.00 | 0.75 | 8.28 | 170.55 | 57.69 | 276.98 | 0.8447 | -396.0 | -377.7 | |
| 0.00 | 0.82 | 0.00 | 0.69 | 5.69 | 167.35 | 54.50 | 273.81 | 0.8140 | -448.0 | -439.8 | |
| 0.00 | 1.36 | 0.00 | 1.18 | 12.64 | 168.10 | 55.25 | 282.30 | 0.8227 | 598.0 | 488.8 | |
| 0.00 | 1.09 | 0.00 | 0.82 | 7.70 | 162.15 | 49.30 | 276.33 | 0.7582 | -150.0 | -118.8 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 9.30 | 156.69 | 43.84 | 278.79 | 0.6939 | 475.0 | 383.6 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 9.12 | 156.62 | 43.76 | 278.54 | 0.6929 | 575.0 | 386.7 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 9.53 | 152.69 | 39.84 | 279.55 | 0.6429 | 649.0 | 456.5 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 10.67 | 151.57 | 38.72 | 281.49 | 0.6295 | 241.0 | 370.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 11.04 | 151.43 | 38.58 | 282.11 | 0.6282 | 635.0 | 530.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
