SDO HMI 2014-07-16 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 32.85 | 0.00 | 22.81 | -20.62 | 148.84 | 36.55 | 233.00 | 0.6976 | 318.1 | 263.5 | |
|
previous
or next observation for the same group /

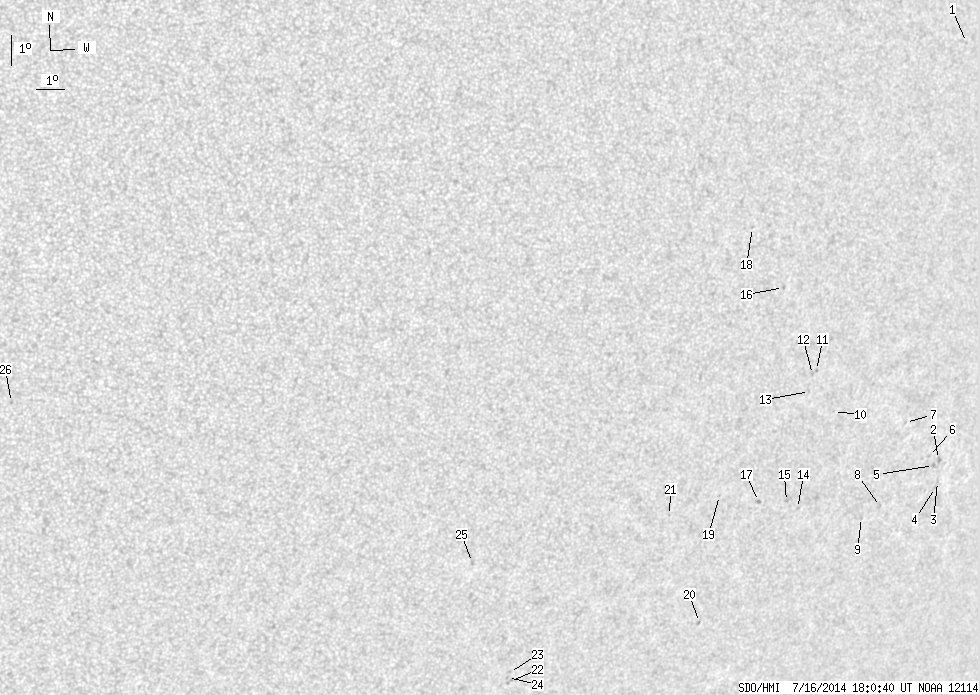

back to the solar disc SDO HMI 2014-07-16 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.80 | -6.84 | 154.22 | 41.93 | 255.12 | 0.6887 | 492.0 | 382.6 | |
| 0.00 | 2.45 | 0.00 | 1.87 | -20.28 | 156.03 | 43.74 | 238.44 | 0.7633 | 629.0 | 549.8 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -21.03 | 156.26 | 43.96 | 237.67 | 0.7691 | 641.0 | 543.6 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -21.23 | 156.24 | 43.95 | 237.43 | 0.7699 | 503.0 | 405.6 | |
| 0.00 | 2.18 | 0.00 | 1.66 | -20.47 | 155.88 | 43.58 | 238.13 | 0.7627 | 646.0 | 548.7 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -20.15 | 155.54 | 43.24 | 238.33 | 0.7579 | 557.0 | 442.5 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -18.95 | 154.13 | 41.84 | 239.03 | 0.7380 | 523.0 | 473.0 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -21.74 | 153.97 | 41.67 | 235.57 | 0.7509 | 571.0 | 525.4 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -22.07 | 153.25 | 40.95 | 234.76 | 0.7460 | 611.0 | 466.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -18.41 | 150.94 | 38.64 | 237.83 | 0.7022 | 501.0 | 509.3 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -17.02 | 149.89 | 37.60 | 238.99 | 0.6830 | 579.0 | 535.8 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -17.14 | 149.76 | 37.46 | 238.74 | 0.6822 | 652.0 | 567.5 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -17.70 | 149.77 | 37.48 | 238.02 | 0.6856 | 693.0 | 591.6 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -21.62 | 150.37 | 38.07 | 233.50 | 0.7154 | 514.0 | 400.4 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -21.35 | 149.83 | 37.53 | 233.46 | 0.7085 | 746.0 | 617.8 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -14.24 | 148.01 | 35.71 | 241.55 | 0.6457 | 688.0 | 592.1 | |
| 0.00 | 2.18 | 0.00 | 1.50 | -21.29 | 148.66 | 36.37 | 232.73 | 0.6965 | 750.0 | 573.3 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -12.26 | 146.50 | 34.20 | 243.44 | 0.6163 | 618.0 | 458.8 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -21.01 | 147.02 | 34.72 | 231.88 | 0.6781 | 465.0 | 423.0 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -25.38 | 147.52 | 35.22 | 227.06 | 0.7140 | 629.0 | 445.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -21.60 | 145.20 | 32.90 | 229.74 | 0.6641 | -736.0 | -612.2 | |
| 0.00 | 2.54 | 0.00 | 1.69 | -27.15 | 140.45 | 28.15 | 219.13 | 0.6675 | -586.0 | -546.5 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -26.83 | 140.36 | 28.06 | 219.39 | 0.6637 | -734.0 | -598.7 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -27.00 | 140.33 | 28.03 | 219.18 | 0.6651 | -464.0 | -509.8 | |
| 0.00 | 1.81 | 0.00 | 1.13 | -22.90 | 138.04 | 25.74 | 221.48 | 0.6062 | -430.0 | -383.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.12 | 121.62 | 9.33 | 202.88 | 0.3999 | -787.0 | -705.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
