SDO HMI 2014-07-17 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.89 | 0.00 | 16.19 | -20.82 | 146.21 | 37.23 | 232.87 | 0.7093 | 130.4 | 46.8 | |
|
previous
or next observation for the same group /

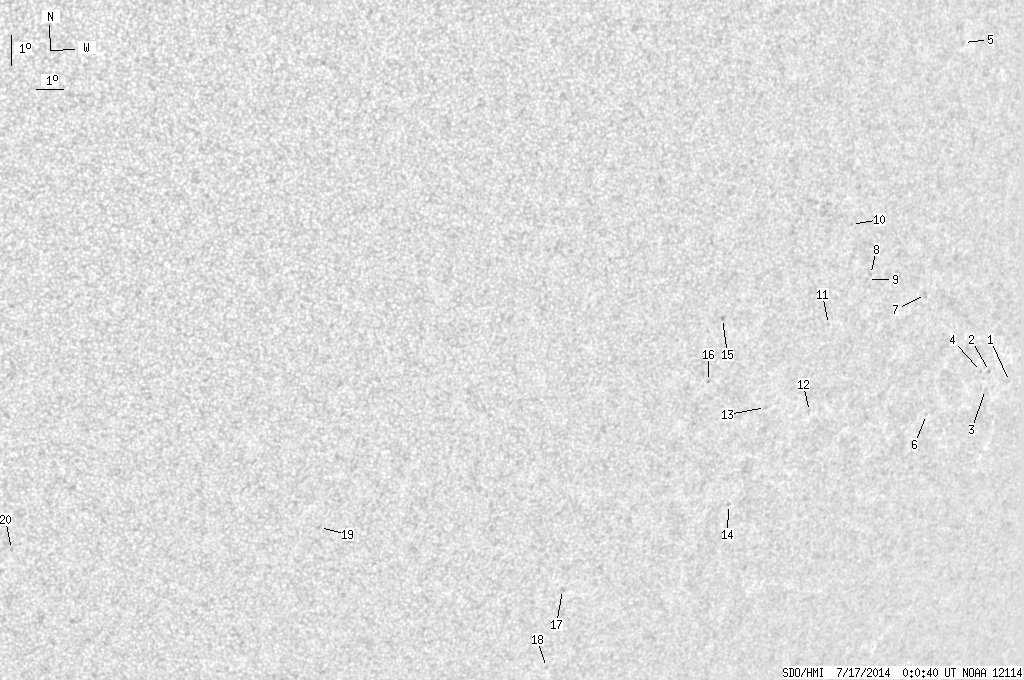

back to the solar disc SDO HMI 2014-07-17 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.61 | -20.89 | 157.63 | 48.66 | 240.07 | 0.8116 | 346.0 | 254.9 | |
| 0.00 | 0.82 | 0.00 | 0.67 | -20.48 | 156.48 | 47.51 | 240.02 | 0.7996 | 374.0 | 294.8 | |
| 0.00 | 0.82 | 0.00 | 0.68 | -21.09 | 156.54 | 47.56 | 239.35 | 0.8026 | 322.0 | 314.4 | |
| 0.00 | 0.64 | 0.00 | 0.52 | -20.46 | 156.09 | 47.11 | 239.87 | 0.7959 | 559.0 | 522.4 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -9.64 | 152.33 | 43.35 | 251.75 | 0.7150 | 650.0 | 543.1 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -21.77 | 154.01 | 45.04 | 237.34 | 0.7828 | 623.0 | 550.3 | |
| 0.00 | 2.45 | 0.00 | 1.83 | -17.70 | 152.54 | 43.57 | 241.44 | 0.7498 | 90.0 | 196.6 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -16.90 | 149.93 | 40.96 | 241.07 | 0.7189 | 651.0 | 635.2 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -17.06 | 149.85 | 40.87 | 240.83 | 0.7188 | 606.0 | 540.6 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -15.22 | 148.73 | 39.75 | 242.59 | 0.6973 | 605.0 | 505.2 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -18.47 | 148.59 | 39.61 | 238.32 | 0.7129 | 557.0 | 458.0 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -21.37 | 148.66 | 39.68 | 234.80 | 0.7300 | 721.0 | 526.9 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -21.13 | 146.73 | 37.76 | 233.85 | 0.7097 | 353.0 | 393.6 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -24.41 | 146.25 | 37.27 | 229.62 | 0.7262 | -543.0 | -407.3 | |
| 0.00 | 1.72 | 0.00 | 1.14 | -18.05 | 144.19 | 35.21 | 236.00 | 0.6636 | -667.0 | -538.9 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -20.13 | 144.14 | 35.17 | 233.28 | 0.6769 | -572.0 | -481.6 | |
| 0.00 | 2.00 | 0.00 | 1.37 | -27.11 | 140.32 | 31.34 | 222.01 | 0.6941 | -665.0 | -485.7 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -29.95 | 140.61 | 31.64 | 219.29 | 0.7201 | -484.0 | -361.9 | |
| 0.00 | 2.27 | 0.00 | 1.39 | -24.55 | 130.49 | 21.51 | 214.76 | 0.5872 | -300.0 | -244.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -25.06 | 119.77 | 10.80 | 199.03 | 0.5225 | -617.0 | -518.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
