SDO HMI 2014-07-17 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.79 | 0.00 | 14.79 | -21.74 | 145.99 | 37.57 | 232.51 | 0.7163 | -145.4 | -130.1 | |
|
previous
or next observation for the same group /

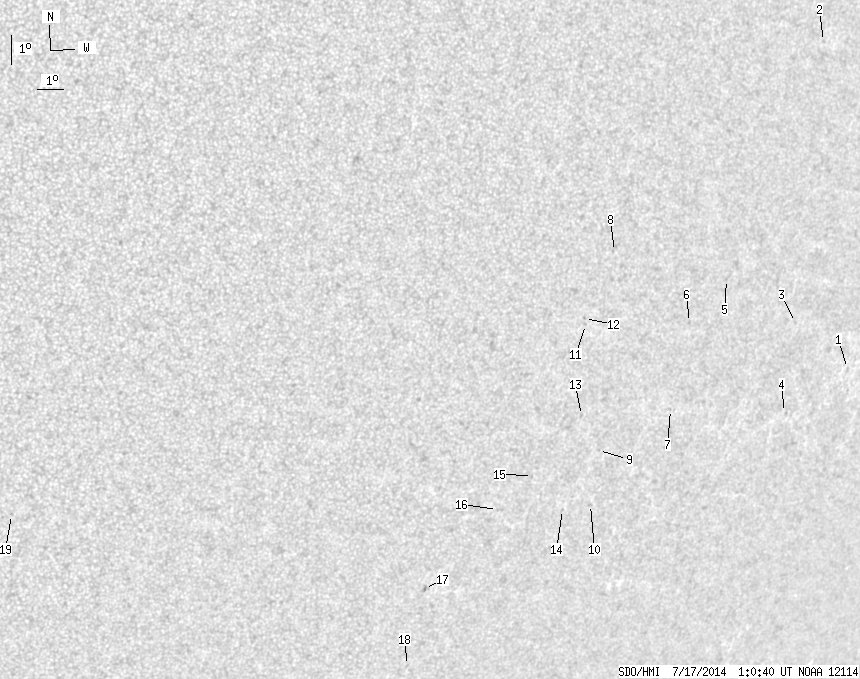

back to the solar disc SDO HMI 2014-07-17 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.28 | -20.44 | 156.40 | 47.98 | 240.28 | 0.8038 | 172.0 | 264.4 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -9.66 | 152.30 | 43.87 | 251.91 | 0.7211 | 565.0 | 502.2 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -18.73 | 153.31 | 44.88 | 240.84 | 0.7675 | 506.0 | 376.3 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -21.76 | 153.93 | 45.51 | 237.58 | 0.7870 | 326.0 | 374.6 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -17.12 | 149.78 | 41.36 | 241.01 | 0.7242 | 565.0 | 502.1 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -18.46 | 148.58 | 40.16 | 238.65 | 0.7186 | 407.0 | 373.7 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -21.36 | 148.66 | 40.24 | 235.14 | 0.7354 | 729.0 | 582.6 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -15.95 | 144.91 | 36.49 | 239.65 | 0.6648 | -383.0 | -408.2 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -22.61 | 146.02 | 37.60 | 231.96 | 0.7175 | -400.0 | -355.5 | |
| 0.00 | 1.72 | 0.00 | 1.25 | -24.48 | 146.31 | 37.89 | 229.97 | 0.7323 | -511.0 | -393.8 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -18.31 | 144.29 | 35.87 | 236.11 | 0.6724 | -625.0 | -555.4 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -18.10 | 144.20 | 35.78 | 236.32 | 0.6701 | -714.0 | -585.4 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -21.37 | 144.94 | 36.52 | 232.71 | 0.6989 | -437.0 | -386.6 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -24.59 | 145.17 | 36.75 | 229.05 | 0.7226 | -461.0 | -367.6 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -23.34 | 143.53 | 35.10 | 229.31 | 0.6986 | -480.0 | -463.2 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -24.46 | 142.45 | 34.03 | 227.18 | 0.6967 | -240.0 | -348.4 | |
| 0.00 | 2.45 | 0.00 | 1.69 | -27.13 | 140.34 | 31.91 | 222.47 | 0.6991 | -669.0 | -576.2 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -29.93 | 140.59 | 32.17 | 219.74 | 0.7241 | -418.0 | -309.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -23.97 | 124.34 | 15.92 | 207.86 | 0.5383 | -694.0 | -553.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
