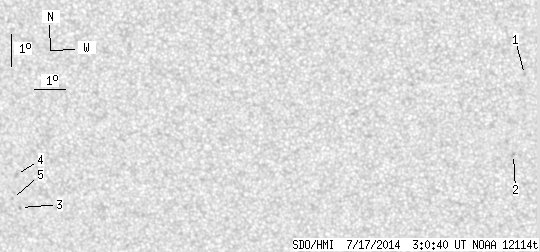

SDO HMI 2014-07-17 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.99 | 0.00 | 3.84 | -13.07 | 90.10 | -17.22 | 139.24 | 0.4241 | -83.0 | -160.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-17 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.93 | 101.30 | -6.03 | 157.45 | 0.2709 | 827.0 | 633.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -12.46 | 100.89 | -6.43 | 159.45 | 0.3128 | 777.0 | 589.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -14.47 | 84.75 | -22.57 | 130.70 | 0.4921 | -535.0 | -522.2 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -13.41 | 84.73 | -22.59 | 128.95 | 0.4825 | -888.0 | -599.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -14.19 | 84.51 | -22.81 | 129.95 | 0.4923 | -596.0 | -438.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
