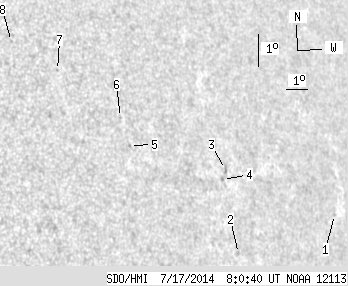

SDO HMI 2014-07-17 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.90 | 0.00 | 7.69 | 8.95 | 155.02 | 50.44 | 278.02 | 0.7702 | 419.8 | 377.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-17 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.82 | 7.08 | 161.70 | 57.12 | 275.49 | 0.8393 | -381.0 | -386.4 | |
| 0.00 | 1.36 | 0.00 | 1.09 | 6.22 | 156.45 | 51.87 | 274.35 | 0.7865 | 401.0 | 315.3 | |
| 0.00 | 2.72 | 0.00 | 2.17 | 8.81 | 156.24 | 51.66 | 277.65 | 0.7843 | 517.0 | 462.1 | |
| 0.00 | 1.63 | 0.00 | 1.29 | 8.51 | 156.04 | 51.45 | 277.28 | 0.7820 | 654.0 | 562.4 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 9.81 | 151.85 | 47.27 | 279.18 | 0.7355 | 613.0 | 558.5 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 10.69 | 151.61 | 47.03 | 280.39 | 0.7333 | 622.0 | 569.8 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 12.28 | 149.13 | 44.54 | 282.90 | 0.7054 | 401.0 | 352.8 | |
| 0.00 | 0.64 | 0.00 | 0.43 | 13.28 | 147.35 | 42.77 | 284.62 | 0.6853 | 531.0 | 476.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
