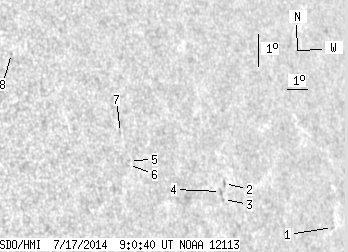

SDO HMI 2014-07-17 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.26 | 0.00 | 8.11 | 8.99 | 155.30 | 51.26 | 277.99 | 0.7790 | 436.2 | 391.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-17 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.00 | 7.09 | 161.79 | 57.75 | 275.53 | 0.8453 | -531.0 | -439.3 | |
| 0.00 | 1.91 | 0.00 | 1.54 | 8.80 | 156.30 | 52.26 | 277.63 | 0.7907 | 569.0 | 509.9 | |
| 0.00 | 1.27 | 0.00 | 1.02 | 8.32 | 156.15 | 52.12 | 277.02 | 0.7891 | 593.0 | 462.3 | |
| 0.00 | 2.54 | 0.00 | 2.04 | 8.57 | 156.05 | 52.01 | 277.34 | 0.7880 | 529.0 | 543.6 | |
| 0.00 | 0.73 | 0.00 | 0.54 | 9.78 | 151.89 | 47.86 | 279.09 | 0.7423 | 620.0 | 547.4 | |
| 0.00 | 1.36 | 0.00 | 1.00 | 9.66 | 151.82 | 47.79 | 278.94 | 0.7414 | 652.0 | 535.1 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 10.65 | 151.65 | 47.62 | 280.29 | 0.7401 | 470.0 | 406.3 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 13.34 | 147.37 | 43.34 | 284.60 | 0.6924 | 588.0 | 474.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
