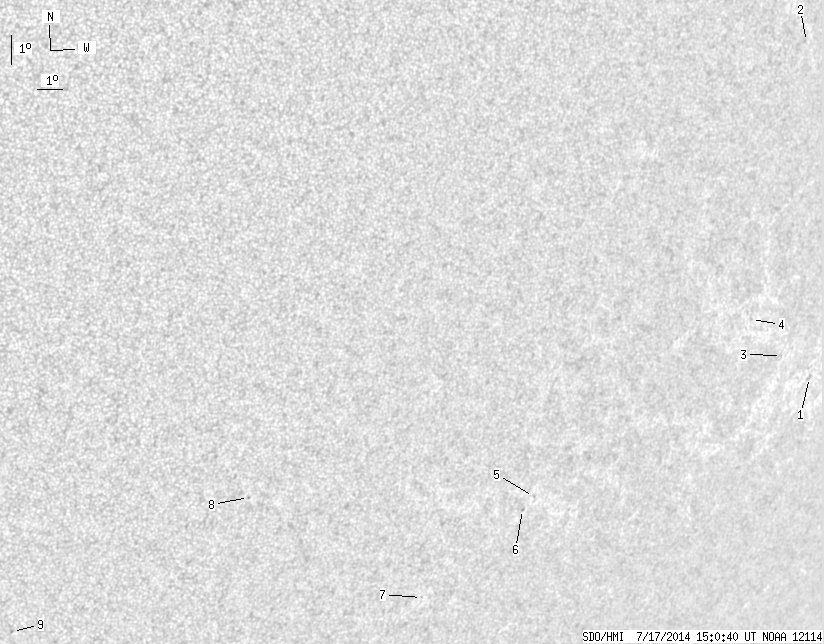

SDO HMI 2014-07-17 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.08 | 0.00 | 7.55 | -21.54 | 147.11 | 46.38 | 236.98 | 0.7959 | -139.2 | -7.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-17 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 2.18 | -20.54 | 156.74 | 56.01 | 243.25 | 0.8714 | 379.0 | 329.4 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -9.46 | 152.48 | 51.75 | 254.68 | 0.8054 | 350.0 | 388.0 | |
| 0.00 | 0.73 | 0.00 | 0.68 | -19.67 | 154.68 | 53.96 | 243.50 | 0.8528 | 450.0 | 340.1 | |
| 0.00 | 1.36 | 0.00 | 1.20 | -18.34 | 152.46 | 51.74 | 244.20 | 0.8299 | 431.0 | 328.5 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -23.75 | 144.13 | 43.40 | 234.16 | 0.7780 | -619.0 | -571.9 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -24.18 | 143.80 | 43.07 | 233.49 | 0.7774 | -579.0 | -449.7 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -27.07 | 140.46 | 39.73 | 228.25 | 0.7651 | -554.0 | -561.7 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -23.16 | 131.97 | 31.24 | 226.38 | 0.6609 | -452.0 | -421.3 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -27.54 | 124.06 | 23.33 | 213.75 | 0.6342 | -659.0 | -463.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
