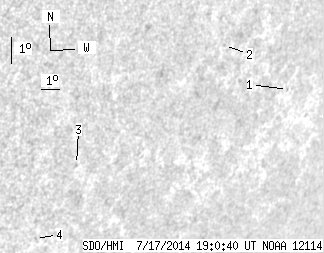

SDO HMI 2014-07-17 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.91 | 0.00 | 3.42 | -20.34 | 148.90 | 50.39 | 241.21 | 0.8248 | -121.5 | -79.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-17 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.83 | -19.55 | 155.13 | 56.62 | 244.53 | 0.8736 | 292.0 | 230.9 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -17.81 | 150.80 | 52.29 | 245.00 | 0.8332 | 380.0 | 321.4 | |
| 0.00 | 1.27 | 0.00 | 1.03 | -21.37 | 144.89 | 46.38 | 238.42 | 0.7935 | -528.0 | -411.9 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -23.83 | 143.99 | 45.48 | 235.18 | 0.7968 | -630.0 | -587.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
