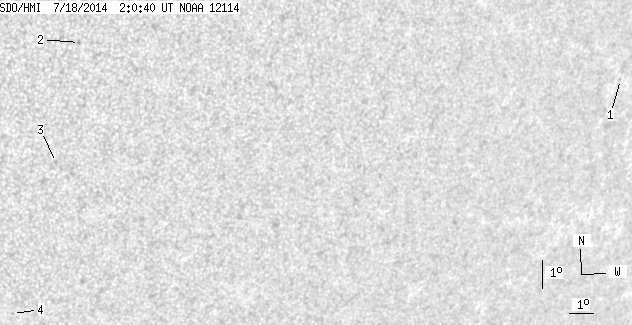

SDO HMI 2014-07-18 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.27 | 0.00 | 2.81 | -20.64 | 126.43 | 31.79 | 228.62 | 0.6479 | -434.2 | -346.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-18 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.69 | -19.35 | 143.80 | 49.16 | 241.98 | 0.8108 | -520.0 | -397.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -16.95 | 121.04 | 26.40 | 229.79 | 0.5589 | -635.0 | -467.6 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -20.92 | 120.88 | 26.24 | 224.29 | 0.5936 | -44.0 | -85.9 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -26.11 | 120.35 | 25.71 | 217.72 | 0.6390 | -538.0 | -443.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
