SDO HMI 2014-07-18 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.25 | 61.93 | 8.55 | 32.44 | 7.02 | 112.49 | 18.95 | 278.14 | 0.3270 | -56.6 | 171.1 | |
|
previous
or next observation for the same group /

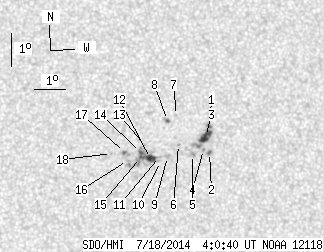

back to the solar disc SDO HMI 2014-07-18 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 17.52 | 0.34 | 9.25 | 7.64 | 113.83 | 20.29 | 279.53 | 0.3500 | -904.1 | -667.7 | |
| 0.64 | 1.91 | 0.34 | 1.01 | 6.85 | 113.79 | 20.25 | 277.27 | 0.3479 | -864.6 | -739.1 | |
| 7.72 | -1.00 | 4.07 | -1.00 | 7.34 | 113.69 | 20.14 | 278.72 | 0.3470 | -1042.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 6.95 | 113.60 | 20.06 | 277.60 | 0.3450 | -1049.0 | -866.1 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 6.80 | 113.24 | 19.69 | 277.29 | 0.3388 | -790.0 | -694.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 7.12 | 112.79 | 19.25 | 278.37 | 0.3321 | 568.0 | 429.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 8.01 | 112.77 | 19.23 | 281.03 | 0.3337 | -630.0 | -438.5 | |
| 0.54 | 1.63 | 0.29 | 0.86 | 7.86 | 112.47 | 18.93 | 280.73 | 0.3285 | -964.7 | -806.6 | |
| 0.00 | 3.00 | 0.00 | 1.57 | 6.76 | 112.42 | 18.88 | 277.40 | 0.3254 | 325.0 | 151.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 6.62 | 112.19 | 18.65 | 277.02 | 0.3214 | -134.0 | -94.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 6.77 | 112.16 | 18.62 | 277.50 | 0.3212 | 442.0 | 327.6 | |
| 4.90 | 24.06 | 2.56 | 12.54 | 6.72 | 111.87 | 18.33 | 277.42 | 0.3163 | 959.4 | 761.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 7.15 | 111.69 | 18.15 | 278.85 | 0.3142 | 642.0 | 485.1 | |
| 1.09 | -12.00 | 0.57 | -12.00 | 6.91 | 111.55 | 18.01 | 278.14 | 0.3114 | 1039.0 | 999999 | |
| 0.27 | -12.00 | 0.14 | -12.00 | 6.76 | 111.55 | 18.00 | 277.65 | 0.3111 | 1160.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 6.68 | 111.12 | 17.58 | 277.53 | 0.3040 | 891.0 | 694.2 | |
| 0.45 | 3.63 | 0.24 | 1.89 | 6.92 | 111.04 | 17.50 | 278.37 | 0.3030 | 925.8 | 762.7 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 6.90 | 110.62 | 17.08 | 278.46 | 0.2960 | 743.0 | 636.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
