SDO HMI 2014-07-18 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 4.99 | 0.39 | 3.06 | -21.95 | 67.06 | -24.84 | 138.51 | 0.5903 | 167.1 | 146.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-18 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

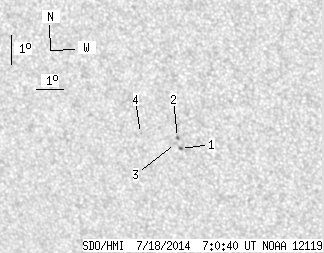

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 1.54 | 0.39 | 0.95 | -22.18 | 67.36 | -24.54 | 139.11 | 0.5898 | 578.9 | 470.8 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -21.80 | 67.32 | -24.58 | 138.62 | 0.5864 | 716.0 | 599.2 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -22.01 | 67.21 | -24.69 | 138.74 | 0.5895 | -124.0 | -100.7 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -21.71 | 65.99 | -25.91 | 137.06 | 0.5980 | -663.0 | -529.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
