SDO HMI 2014-07-18 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.34 | 67.27 | 9.19 | 35.71 | 6.87 | 112.39 | 21.04 | 277.08 | 0.3607 | 95.9 | 43.7 | |
|
previous
or next observation for the same group /

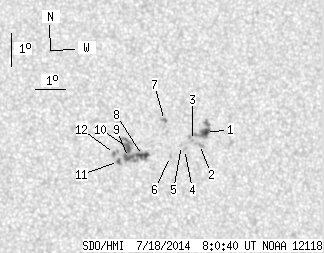

back to the solar disc SDO HMI 2014-07-18 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.63 | 17.34 | 2.48 | 9.30 | 7.25 | 113.93 | 22.58 | 277.74 | 0.3861 | -1044.0 | -776.7 | |
| 0.00 | 3.63 | 0.00 | 1.95 | 6.89 | 113.72 | 22.36 | 276.86 | 0.3821 | -926.0 | -809.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 7.02 | 113.49 | 22.14 | 277.24 | 0.3786 | -970.0 | -804.3 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 6.75 | 113.21 | 21.86 | 276.60 | 0.3738 | -778.0 | -639.4 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 6.88 | 113.12 | 21.77 | 276.95 | 0.3725 | -570.0 | -403.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.55 | 112.74 | 21.39 | 276.15 | 0.3660 | -783.0 | -602.7 | |
| 0.00 | 2.45 | 0.00 | 1.30 | 7.66 | 112.60 | 21.25 | 279.21 | 0.3654 | -967.0 | -874.6 | |
| 4.90 | 32.87 | 2.59 | 17.35 | 6.61 | 111.82 | 20.47 | 276.50 | 0.3512 | 1009.8 | 771.1 | |
| 3.45 | -8.00 | 1.82 | -8.00 | 6.56 | 111.36 | 20.01 | 276.47 | 0.3436 | 1093.7 | 999999 | |
| 3.18 | -8.00 | 1.68 | -8.00 | 6.87 | 111.34 | 19.99 | 277.36 | 0.3437 | 1085.9 | 999999 | |
| 0.73 | 2.09 | 0.38 | 1.10 | 6.45 | 111.03 | 19.68 | 276.21 | 0.3381 | 1066.5 | 936.3 | |
| 0.45 | 3.90 | 0.24 | 2.05 | 6.70 | 110.91 | 19.56 | 276.98 | 0.3364 | 1072.4 | 837.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
