SDO HMI 2014-07-18 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.08 | 76.61 | 7.53 | 41.07 | 6.76 | 112.20 | 22.49 | 276.46 | 0.3839 | -1.5 | 239.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-18 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

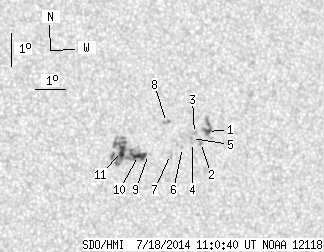

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 11.98 | 1.19 | 6.52 | 7.19 | 114.09 | 24.39 | 277.20 | 0.4147 | -1055.6 | -740.6 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 6.87 | 113.84 | 24.13 | 276.46 | 0.4103 | -969.0 | -777.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 7.15 | 113.65 | 23.95 | 277.18 | 0.4076 | -944.0 | -778.2 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 6.87 | 113.57 | 23.87 | 276.52 | 0.4060 | -792.0 | -697.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 7.00 | 113.54 | 23.84 | 276.83 | 0.4057 | -885.0 | -677.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 6.73 | 113.23 | 23.52 | 276.23 | 0.4004 | -823.0 | -682.0 | |
| 0.00 | 2.81 | 0.00 | 1.52 | 6.53 | 112.82 | 23.11 | 275.79 | 0.3936 | -290.0 | -521.5 | |
| 0.00 | 3.18 | 0.00 | 1.71 | 7.51 | 112.74 | 23.03 | 278.30 | 0.3936 | -876.0 | -731.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 6.56 | 112.09 | 22.38 | 275.97 | 0.3819 | 229.0 | 235.2 | |
| 6.63 | 51.11 | 3.54 | 27.24 | 6.54 | 111.75 | 22.05 | 275.98 | 0.3766 | 927.7 | 777.4 | |
| 5.27 | -10.00 | 2.80 | -10.00 | 6.68 | 111.20 | 21.49 | 276.46 | 0.3678 | 1177.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
