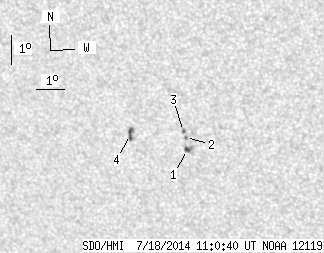

SDO HMI 2014-07-18 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.08 | 15.07 | 3.68 | 9.10 | -22.09 | 66.91 | -22.79 | 141.06 | 0.5732 | 125.7 | 122.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-18 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.82 | 5.54 | 1.09 | 3.33 | -22.39 | 67.78 | -21.92 | 142.45 | 0.5685 | 721.9 | 626.6 | |
| 0.36 | 1.36 | 0.22 | 0.82 | -21.98 | 67.78 | -21.92 | 141.96 | 0.5641 | 678.8 | 486.6 | |
| 0.54 | 1.54 | 0.33 | 0.92 | -21.78 | 67.74 | -21.96 | 141.68 | 0.5622 | 663.5 | 594.2 | |
| 3.36 | 6.63 | 2.04 | 4.03 | -21.94 | 65.82 | -23.88 | 139.58 | 0.5814 | -874.2 | -697.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
