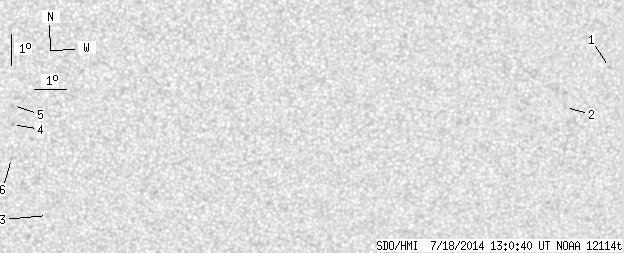

SDO HMI 2014-07-18 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.54 | 0.00 | 3.45 | -12.69 | 91.68 | 3.08 | 188.33 | 0.3362 | -306.3 | -227.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-18 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.82 | -10.98 | 103.57 | 14.96 | 223.56 | 0.3694 | 699.0 | 428.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -12.22 | 102.22 | 13.61 | 218.63 | 0.3700 | 676.0 | 562.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.54 | 85.90 | -2.70 | 172.49 | 0.3494 | -745.0 | -593.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.62 | 84.84 | -3.76 | 167.82 | 0.3046 | -851.0 | -660.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.01 | 84.85 | -3.75 | 167.40 | 0.2947 | -852.0 | -669.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -13.71 | 84.79 | -3.81 | 168.40 | 0.3225 | -765.0 | -593.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
