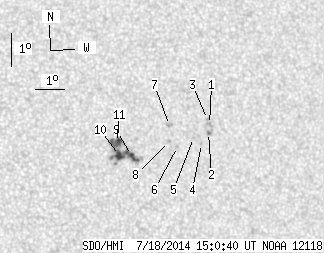

SDO HMI 2014-07-18 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.33 | 54.43 | 9.92 | 29.63 | 6.80 | 111.92 | 24.42 | 276.24 | 0.4146 | 171.7 | 183.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-18 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 1.61 | 7.35 | 114.25 | 26.75 | 277.14 | 0.4517 | -868.0 | -732.6 | |
| 0.36 | 2.90 | 0.20 | 1.61 | 7.11 | 114.20 | 26.70 | 276.61 | 0.4507 | -924.2 | -753.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 7.51 | 114.19 | 26.69 | 277.49 | 0.4510 | -737.0 | -604.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 6.78 | 113.93 | 26.44 | 275.92 | 0.4463 | -899.0 | -728.5 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 6.98 | 113.67 | 26.18 | 276.39 | 0.4424 | -841.0 | -624.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 6.72 | 113.11 | 25.61 | 275.88 | 0.4334 | -862.0 | -739.9 | |
| 0.00 | 2.90 | 0.00 | 1.59 | 7.37 | 112.88 | 25.38 | 277.43 | 0.4305 | -949.0 | -648.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 6.88 | 112.85 | 25.35 | 276.30 | 0.4294 | -896.0 | -719.8 | |
| 5.63 | 39.47 | 3.05 | 21.36 | 6.50 | 111.54 | 24.05 | 275.57 | 0.4085 | 980.4 | 795.1 | |
| 5.44 | -9.00 | 2.94 | -9.00 | 6.52 | 111.14 | 23.64 | 275.66 | 0.4021 | 1137.0 | 999999 | |
| 6.90 | -9.00 | 3.73 | -9.00 | 6.91 | 111.06 | 23.56 | 276.67 | 0.4013 | 1047.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
