SDO HMI 2014-07-18 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.08 | 0.00 | 5.86 | -13.10 | 92.87 | 6.48 | 198.41 | 0.3540 | 261.9 | 87.8 | |
|
previous
or next observation for the same group /

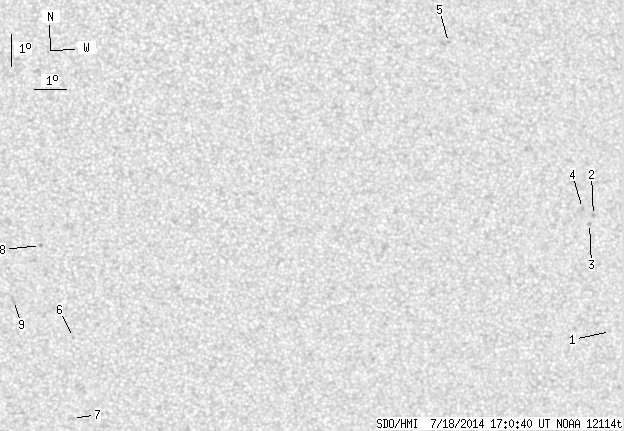

back to the solar disc SDO HMI 2014-07-18 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.56 | 103.08 | 16.69 | 218.97 | 0.4418 | 649.0 | 403.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -11.82 | 102.26 | 15.88 | 223.68 | 0.3893 | 781.0 | 661.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -12.07 | 102.15 | 15.76 | 223.02 | 0.3910 | 751.0 | 636.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -11.59 | 101.90 | 15.51 | 223.43 | 0.3826 | 938.0 | 861.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.29 | 97.45 | 11.06 | 225.37 | 0.2692 | 777.0 | 622.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.53 | 85.87 | -0.52 | 178.54 | 0.3465 | -661.0 | -541.4 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -18.18 | 85.83 | -0.56 | 178.62 | 0.3897 | 509.0 | 497.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.57 | 84.85 | -1.54 | 174.93 | 0.2984 | -859.0 | -645.0 | |
| 0.00 | 2.90 | 0.00 | 1.52 | -14.33 | 83.99 | -2.40 | 172.88 | 0.3291 | -528.0 | -565.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
