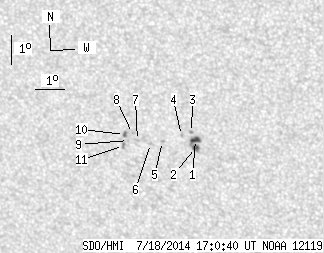

SDO HMI 2014-07-18 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.08 | 23.69 | 4.14 | 13.91 | -21.95 | 67.41 | -18.98 | 145.82 | 0.5387 | 21.0 | 5.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-18 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.81 | 11.79 | 2.22 | 6.89 | -21.89 | 68.30 | -18.09 | 146.97 | 0.5305 | 909.6 | 625.2 | |
| 2.36 | -1.00 | 1.38 | -1.00 | -22.16 | 68.27 | -18.12 | 147.22 | 0.5341 | 831.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.65 | 68.20 | -18.19 | 146.55 | 0.5286 | 967.0 | 733.2 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -21.77 | 67.83 | -18.55 | 146.17 | 0.5329 | 737.0 | 559.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -21.99 | 67.14 | -19.25 | 145.46 | 0.5412 | -548.0 | -454.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -22.07 | 66.71 | -19.68 | 144.97 | 0.5457 | -776.0 | -607.2 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -21.98 | 66.27 | -20.12 | 144.28 | 0.5484 | -741.0 | -606.8 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -21.74 | 66.13 | -20.26 | 143.83 | 0.5470 | -833.0 | -707.4 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -21.99 | 65.96 | -20.43 | 143.88 | 0.5512 | -531.0 | -475.1 | |
| 0.91 | 2.18 | 0.54 | 1.29 | -21.79 | 65.85 | -20.54 | 143.50 | 0.5499 | -869.8 | -704.6 | |
| 0.00 | 2.09 | 0.00 | 1.24 | -22.16 | 65.75 | -20.64 | 143.82 | 0.5550 | -717.0 | -501.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
