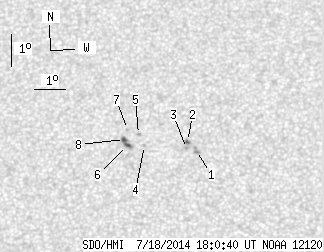

SDO HMI 2014-07-18 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.99 | 16.69 | 2.03 | 8.46 | 16.78 | 82.15 | -3.69 | 16.20 | 0.2206 | -109.0 | -140.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-18 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.72 | 0.00 | 1.88 | 16.56 | 83.48 | -2.36 | 10.81 | 0.2111 | -994.0 | -881.9 | |
| 0.73 | 1.72 | 0.37 | 0.87 | 16.84 | 83.19 | -2.65 | 11.82 | 0.2167 | -909.0 | -664.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 16.62 | 83.16 | -2.68 | 12.17 | 0.2132 | -967.0 | -768.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.71 | 81.82 | -4.01 | 17.78 | 0.2206 | -835.0 | -583.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 17.05 | 81.62 | -4.21 | 18.10 | 0.2271 | 769.0 | 614.2 | |
| 1.72 | 6.35 | 0.88 | 3.23 | 16.71 | 81.28 | -4.56 | 20.00 | 0.2235 | 1070.0 | 832.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 17.20 | 81.27 | -4.57 | 19.27 | 0.2316 | 665.0 | 422.5 | |
| 1.54 | -6.00 | 0.78 | -6.00 | 16.89 | 81.18 | -4.66 | 20.10 | 0.2271 | 1013.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
