SDO HMI 2014-07-18 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 22.41 | 1.75 | 11.36 | 16.70 | 83.08 | -1.09 | 4.91 | 0.2108 | -160.5 | -482.5 | |
|
previous
or next observation for the same group /

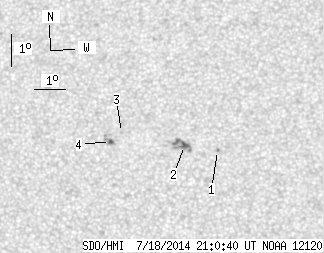

back to the solar disc SDO HMI 2014-07-18 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.64 | 16.51 | 84.58 | 0.41 | 358.09 | 0.2063 | -934.0 | -754.9 | |
| 2.27 | 16.24 | 1.15 | 8.23 | 16.67 | 83.53 | -0.64 | 2.95 | 0.2091 | -1057.1 | -802.7 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 17.07 | 81.52 | -2.65 | 11.62 | 0.2204 | 825.0 | 678.1 | |
| 1.18 | 4.17 | 0.60 | 2.12 | 16.79 | 81.17 | -3.00 | 13.39 | 0.2170 | 1204.4 | 842.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
